Low price pvc upvc casement window friction brace series stainless steel round groove friction brace
- $0.38 / >=100 pieces
- 100 pieces
- Zhaoqing Gaoyao District ZhiLi metal products Co., LTD
- Guangdong, China
- Ms Mei Zhu
Product Detail
| type: | Door and window hinges, friction supports | Supply capacity: | 50000 pieces per week |
| brand: | Zhili | design style: | modern |
| Hanging type: | side mount | feature: | Durable and rust-proof |
| Bar Thickness: | 2.0MM, 2.5mm, 3.0mm | Packaging Details: | Normal packing 2pcs/polybag, 100pcs/carton according to your request |
| After-sales service: | online technical support | port: | Guangzhou |
| Opening angle: | 87 degrees | Material: | Stainless Steel 201/304/430 |
| Package preview: | payment terms: | wire transfer | |
| Warranty: | 1 year | application: | casement windows, apartment |
| model: | YC190 | Hinge height: | 13mm~15.5mm |
| place of origin; place of origin: | Guangdong, China | product name: | friction stay |
| Hinge length: | 8"~24" | Project solution ability: | overall project solution |

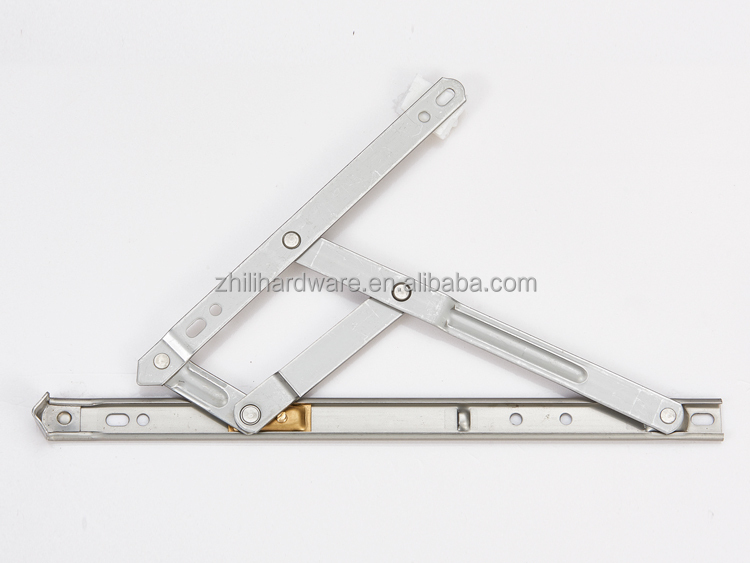

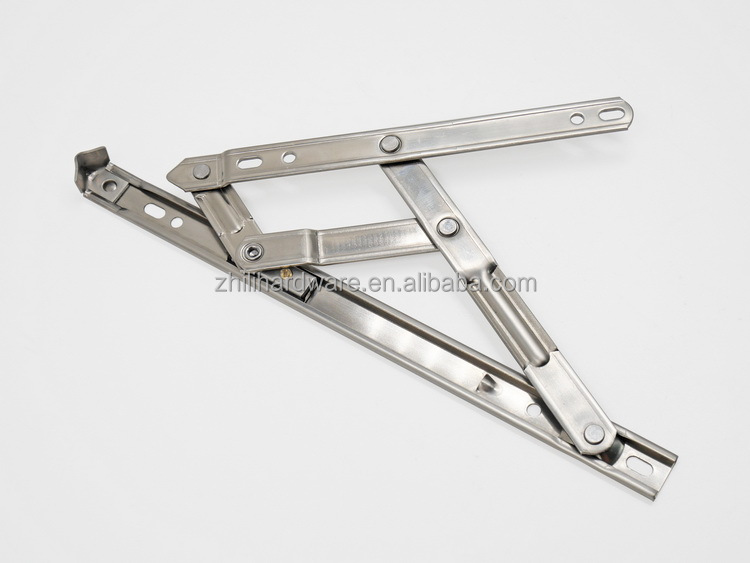

Circular groove friction support hinge
Model: YC-190 series
1. For uPVC/aluminum casement windows
2. High-quality raw materials,ExcellentRJust resist. Wind resistance
3. Factory direct sale, competitive price.
4. Precise structure, stable operation, life expectancy up to 30,000 times
5.High-quality pre-sales and after-sales service, 2 yearsWarranty (SUS304 product).

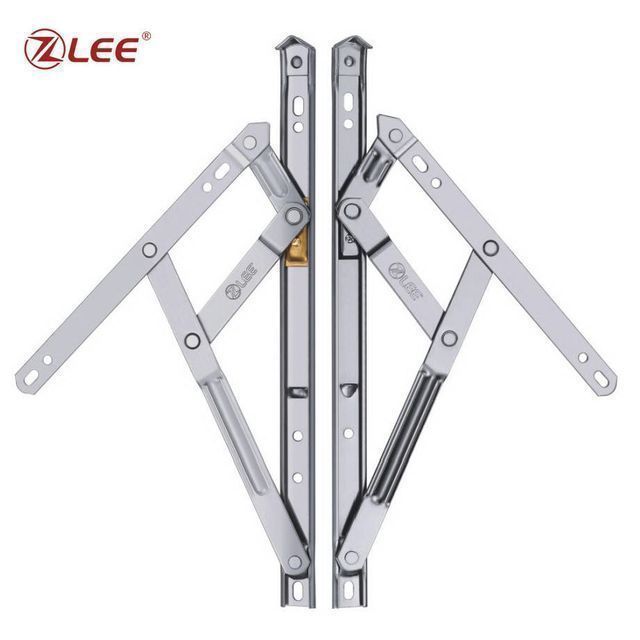

Figure 1: Flat Side Support Arm
Figure 2: Support Arms of the Curled Bezel Type

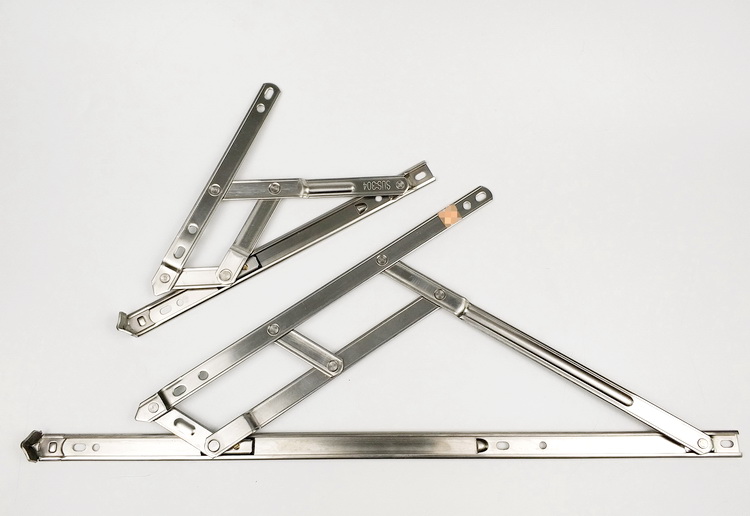

Figure 3: Wide choice of length (8"~24"), thickness (2.0/2.5/3.0mm)

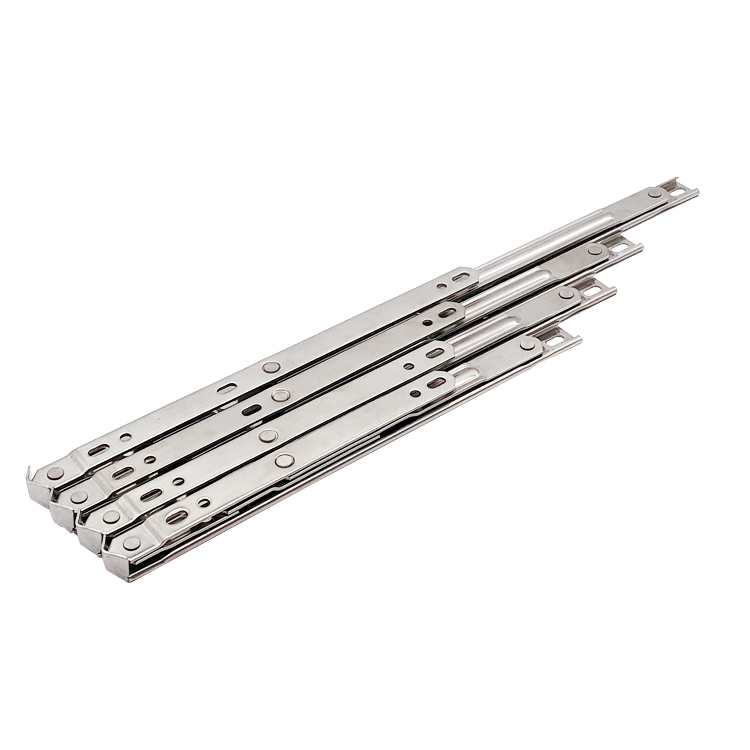

Figure 4: 5 or 6 bars available

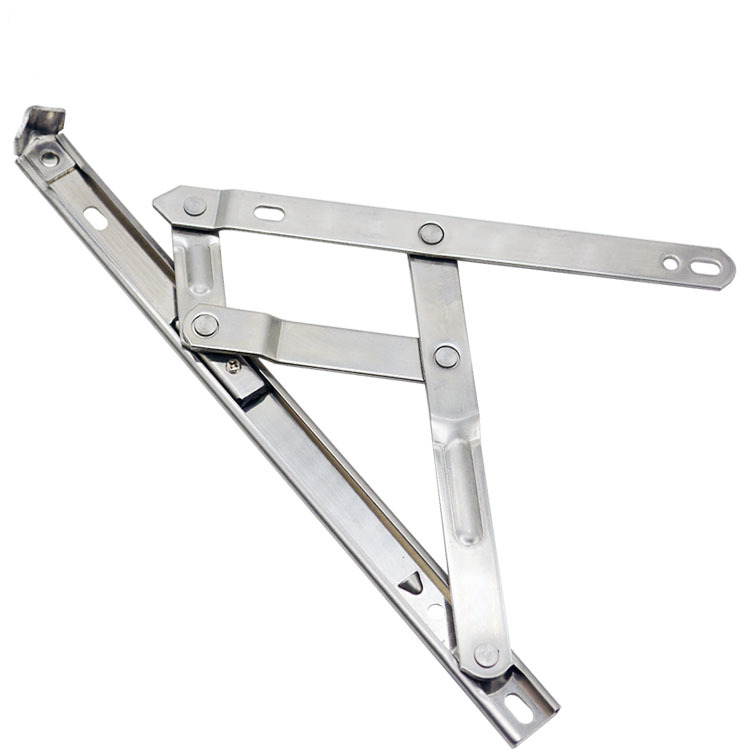

Figure 5: Better rust resistance, stainless steel SUS304 material with brass slider

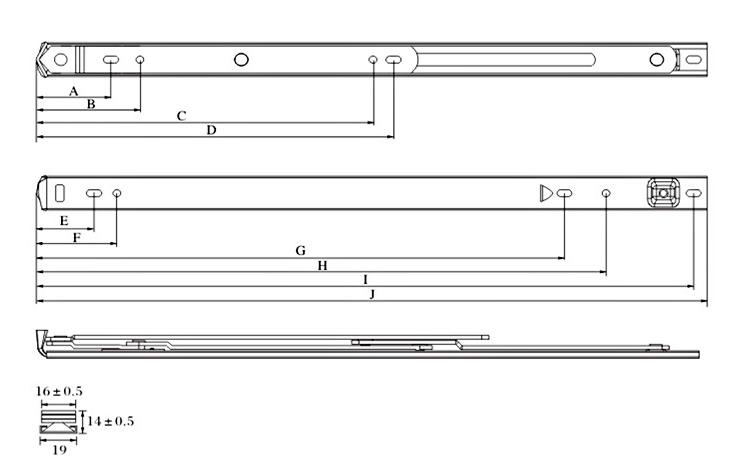

Installation size:

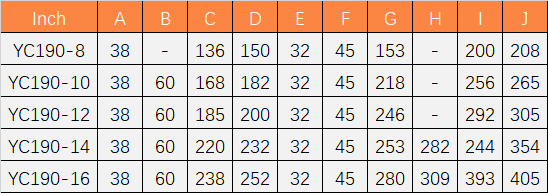

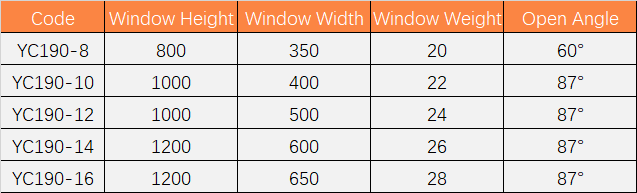

technical parameter:
Specification:
|
product name |
Circular groove friction support hinge |
|
brand |
Zhili |
|
application |
Suitable for casement or top hung casement windows, uPVC/aluminum windows |
|
Material |
Stainless steel (SS304/SS201/SS430) |
|
Groove width |
19mm round groove |
|
length |
8"-24" |
|
stack height |
13.5mm (if the thickness is 2.0mm), 15mm (if the thickness is 2.5mm) |
|
Groove |
round groove |
|
Bar thickness |
2.0mm, 2.5mm |
|
groove thickness |
0.8mm~1.0mm |
|
slider (shoe) |
Steel Slider, or Brass Slider |
|
Finish |
SS natural finish, or polished |
|
Quality Control |
Passed 30,000 opening and closing tests |
|
opening angle |
65°(8"), 87°(10"~18") |
|
packaging details |
1 pair/polybag (inner box provided) 100pcs/carton(8"-12"), 50pcs/carton(max 14") |
|
OEM/Design and Manufacturing |
usable |
|
other service |
free sample |
