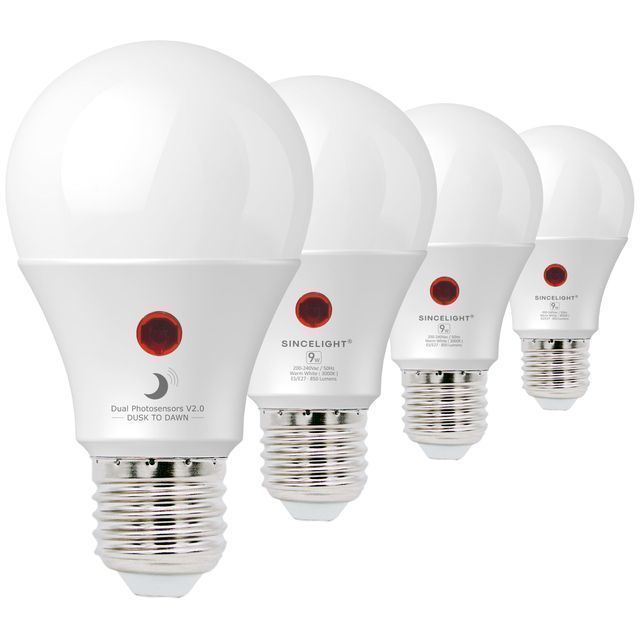

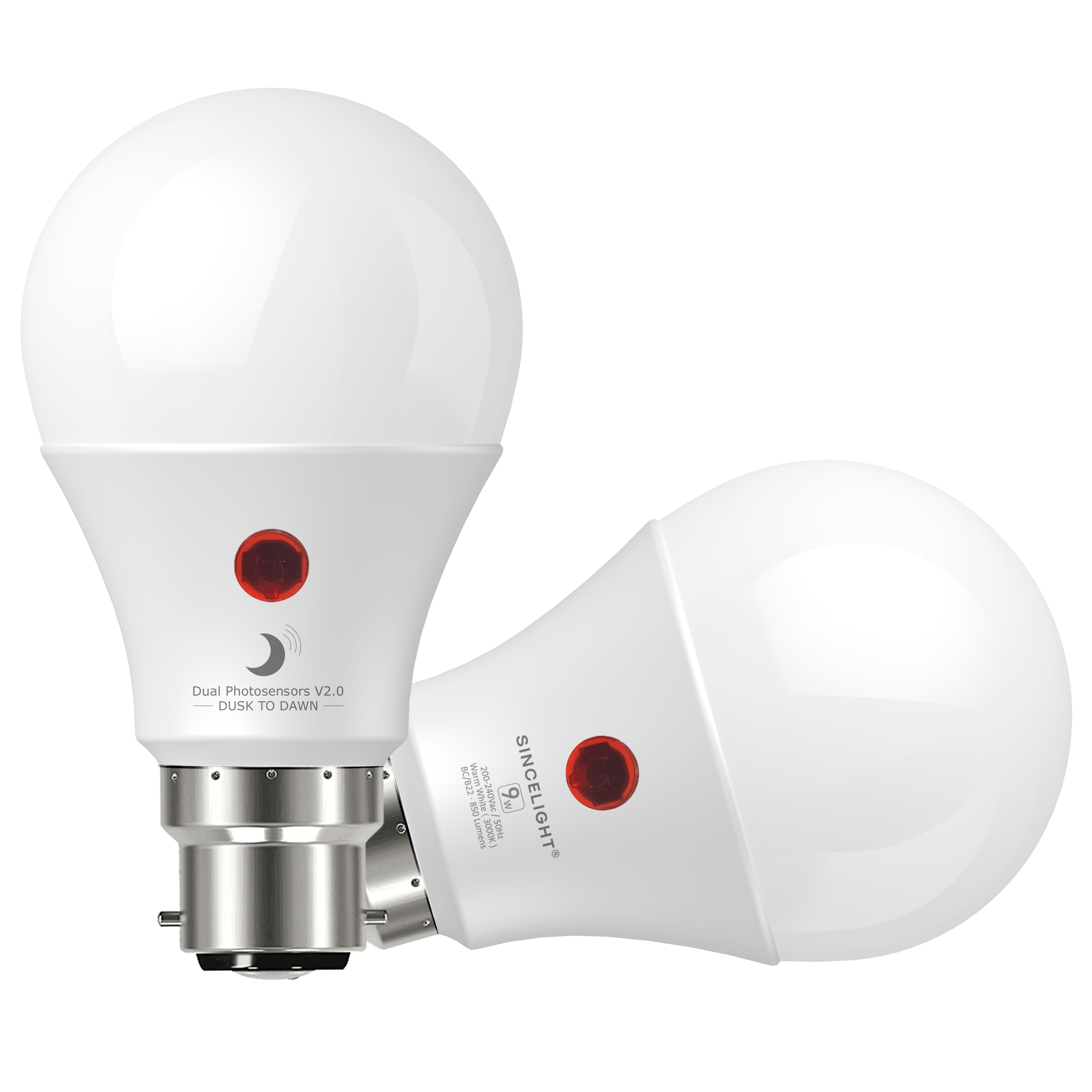

AC120V 230V 50/60HZ Dusk to Dawn Time Sensor LED 9W 12W

Product Detail

feature:dusk to dawn sensorCertification:CE/RoHS
Lamp Luminous Efficiency (lm/w):850-900Lmport:Xiamen
application:Indoor lightingBeam Angle(°):220
model:A60 Dusk to dawnlight source:to lead
brand:Si Guangstyle:modern
Warranty (year):3 yearsaccording to:B22 E27 E26
payment terms:Western Union, T/T, MoneyGramLifespan (hours):15000
place of origin; place of origin:Fujian Chinaswitch mode:sensor
power supply:direct currentdesign style:modern
Lighting Solutions Services:Lighting and Circuit Designcolor:white
Package preview:Input voltage (V):100-130V, 200-240V
Beam angle:220 degreesLamp luminous flux (lm):850-900 lumens
Supported dimmers:Do not

Dusk to Dawn Sensing Bulbs

| Automatic Switching, Retrofitting and Renewal |
|RA>85|



data sheet
| Excellent value for money |

|electrical date|
Voltage (V)
100-130Vac/60Hz, 200-240Vac/50Hz
Power factor ( λ )
0.5+
start time (seconds)
<0.5
Warm up time (seconds)
instant full light
|product date|
bulb type
A60 Dusk to dawn
lamp holder
B22,E26,E27
Beam angle
220°
Product power ( W )
9W,12W
Equivalent wattage ( W )
85-90,110W
Color temperature (K)
3000K/4000K/6000K
Color Rendering Index ( Ra )
85
Dimmable
no
energy label
a +
Operating temperature
-30°C to +40°C
Switching cycle (times)
>1,000,000
Mercury content (mg)
Not applicable
Weight / grams)
30 grams
|performance date|
Total luminous flux (lm)
850-900 lumens
Rated life (hours)
15,000
|aspect|
Diameter (mm)
60/65mm
Length (mm)
110/124mm



color performance
Color temperature optional
| 3000K, 4000K, 6000K |
high color rendering index
RA≈85

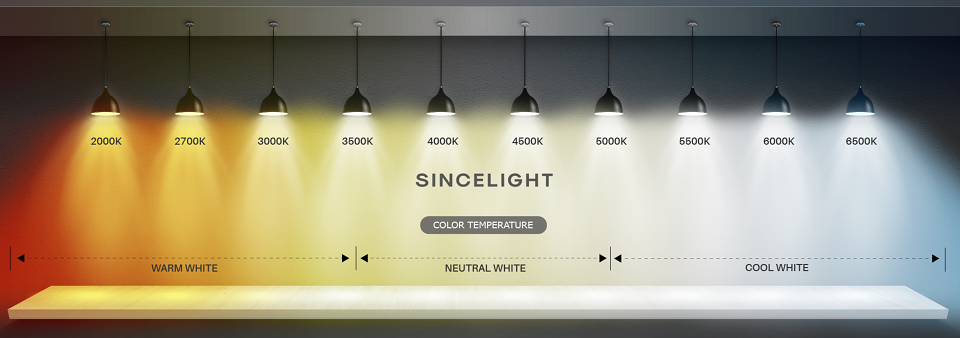

color temperature

The color temperature of a light source is taken from the temperature of a perfect black body radiator that radiates light with an appearance similar to that of the light source. It is measured in absolute temperature units; Kelvin (K). Interestingly,
Although red is associated with warm colors and blue is associated with cool colors, blue appears higher on the black body curve
The temperature is higher than red. A more visual example of this apparent color temperature contradiction can be seen in candlelight, which emits a warm reddish-orange light but is actually cooler in Kelvin at 1850K. Therefore, higher color temperatures (above 5000K) are called cool colors (blue-white); lower color temperatures (2700 – 3000K) are called warm colors (yellow-white to red).

|||Color rendering index
(Radio International)

The Color Rendering Index (CRI or Ra) is a quantitative measure that evaluates the ability of a light source to faithfully reproduce the color of an object. To objectively compare the color rendering characteristics of any light source, the CIE's standardized measurement uses a scale of 0 to 100 (poor to excellent). Calculates the color change of 14 standard colors when an object is exposed to a specific light source and then compares it to a reference light source of the same color temperature (black bodies* for color temperatures up to 5000K and daylight above 5000K). CRI for a pair of light sources Comparisons can only be made with the same color temperature. The CRI scale is chosen so that, by definition, an ideal blackbody light source such as an incandescent or halogen lamp has a CRI rating of 100. For light sources that emit a discrete spectrum, such as LEDs and discharge lamps, the CRI can be anywhere between 0 - 100. As a rule of thumb, the more the spectrum is filled in all wavelengths (380–760nm), the better the color rendering of the light source Well, but a high CRI measurement essentially means less efficiency (since less efficient wavelengths are also represented in the spectrum). * A blackbody is a theoretical object that absorbs all incident electromagnetic radiation and, due to its ability to absorb all wavelengths, is the best possible emitter of thermal radiation. It radiates a continuous spectrum that depends on the temperature of the body.

color consistency
( SDCM )

| SiguangSDCM<5|

The key to creating an LED lighting scheme that looks good for years to come is ensuring that all lamps perform within acceptable tolerances for color shift over their lifetime. To define "acceptable tolerance" from lamp to lamp, LED manufacturers use the MacAdam ellipse and SDCM (Standard Deviation of Color Matching) to measure color consistency.

McAdam Ellipse
The MacAdam ellipse is a color measurement system. It measures how much color variation is possible around these axes, then
The human eye detects the color change. A series of ellipses can then be drawn around any target color, the closer any given light is to the target, the less color deviation there will be when those lights are placed side by side in an installation.

The distance from the target point in each ellipse is measured in SDCM. SDCM of order 1 means no color difference between LED chips, 2-3 SDCM means hardly any visible color difference. The color consistency of 6-7 SDCM is accepted by the market and complies with European Ecodesign-US Energy Star requirements.

SINCELIGHT® Performance
SINCELIGHT® LED professional light sources have a color consistency of 3-5 SDCM due to SINCELIGHT®'s control over phosphor/LED mixing.
