Polycarbonate hollow sheet for sale with 10 year guarantee UV coating
-
$3.50 / 1 - 299999 kilograms
$3.00 / 300000 - 8999999 kilograms
$2.70 / >=9000000 kilograms - 1 kilogram
- Polyvalley Technology (Tianjin) Co., Ltd.
- Tianjin, China
- Mr Yang Jacek
Product Detail
| model: | BGM82C-03 | Transmittance: | 82% |
| Material: | 100% Virgin Bayer | Package: | PE masking film (OEM available) |
| Single package size: | 15X15X10 cm | Sales unit: | single product |
| Gross weight per piece: | 1.000 kg | UV coating: | 50 microns on one side (both sides are optional) |
| Warranty: | 10 years guarantee | brand: | Bolivary |
| thickness: | 4-12mm | application: | Greenhouse skylight carport awning roof etc. |

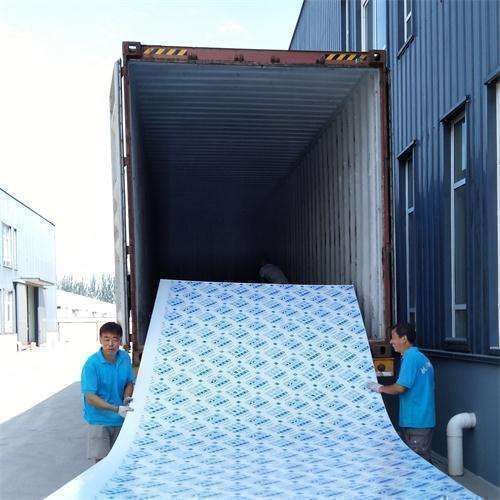

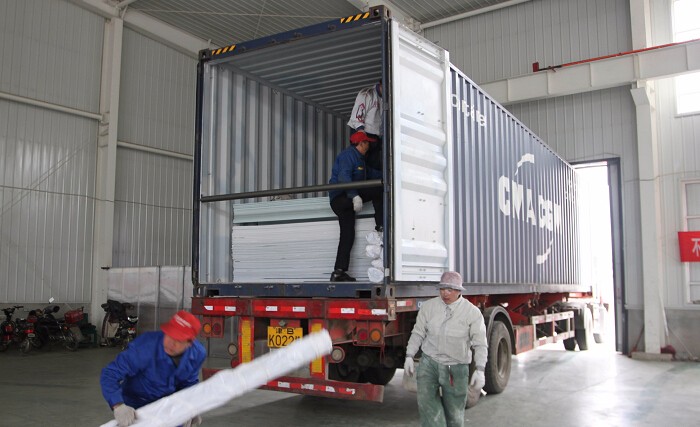

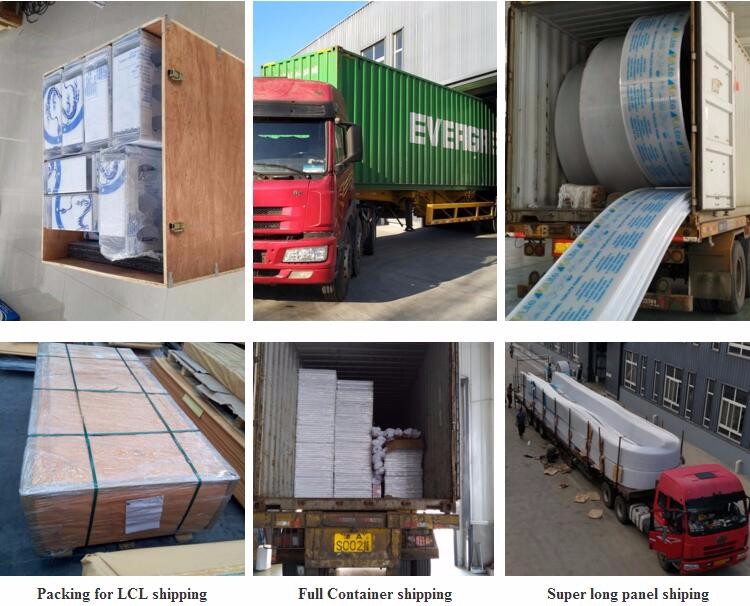

| color: | Clear, Blue, Green, Bronze, Metallic, White, Red, Orange | Packaging Details: | Pallets with frame packaging will be used for LCL shipments. Multi-layer boards are packed with masking film, solid boards are packed with kraft paper |
| size: | Width: 2100; Length: 5800 or 11800mm | Certification: | ISO9001:2008 |
High leverage 10 years warranty double wall polycarbonate sheet multiwall sheet

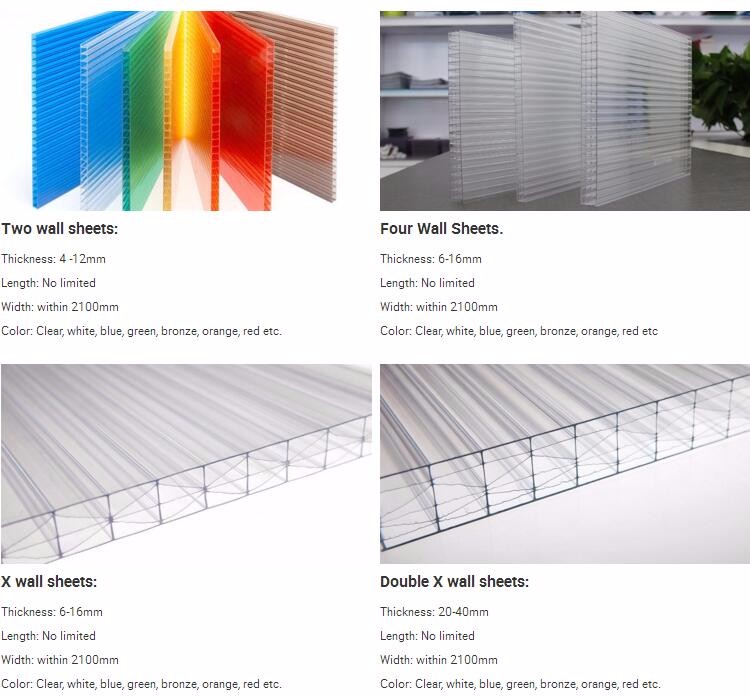

Polyvalley Technology is a professional polycarbonate sheet manufacturer, focusing on using only 100% brand new BAYER or GE raw materials to manufacture high quality PC sheets with at least 50 micrograms of uv coating on one side. Multi-layer sheet T-shaped die head includes two-wall panels, four-wall panels, X-wall panels, double-X wall panels, etc.
The main characteristics of multi-layer panels
| property | to unite | value | ||||
| thickness | mm | 6 mm | 8mm | 10mm | 16mm | 40mm |
| area weight | kg/square meter | 1.1-1.3 | 1.3-1.5 | 1.5-1.7 | 2.7 | 6 |
| U value | W/M2.K | 2.56 | 2.39 | 2.3 | 2 | 1.58 |
| UV thickness | mu | 50 | 50 | 50 | 50 | 50 |
| Transmittance | % | 85 | 83 | 80 | 70 | 60 |
| Operating temperature | ℃ | -50 to 120 | ||||
| Practical thermal expansion range | mm/m | 3 | ||||
| flammability | | B1 | ||||
| Width Dimension Tolerance | mm | ±3 | ||||
| Length Tolerance | % | ±5 | ||||
| weight tolerance | % | ±5 | ||||

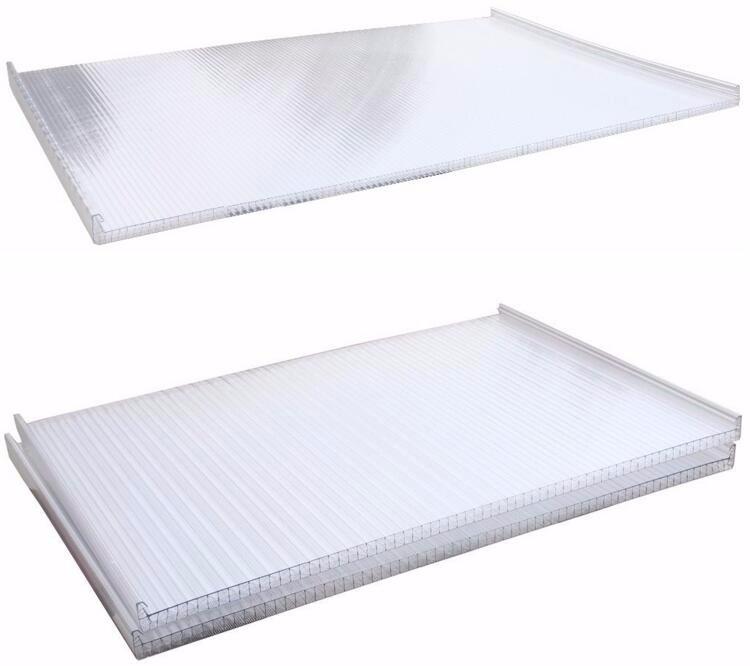

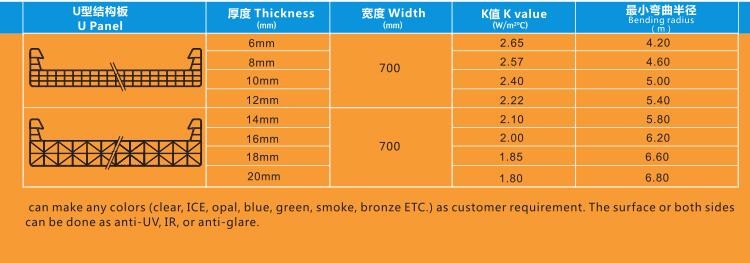

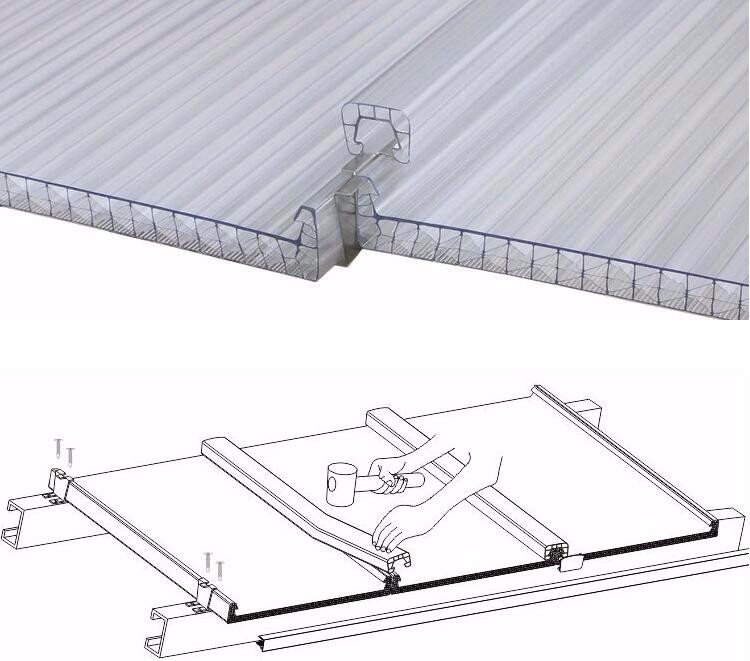

Multi-layer U-shaped panels:
The U-shaped panel is developed by Polyvalley, which has the advantages of 100% waterproof, easy installation, high light transmission, heat insulation, and impact resistance. There is a special space between the connecting parts of the two panels. Therefore, the entire long slab can be used in large-span buildings without worrying about thermal expansion. Polyvalley offers a full line of installation accessories and technical support.

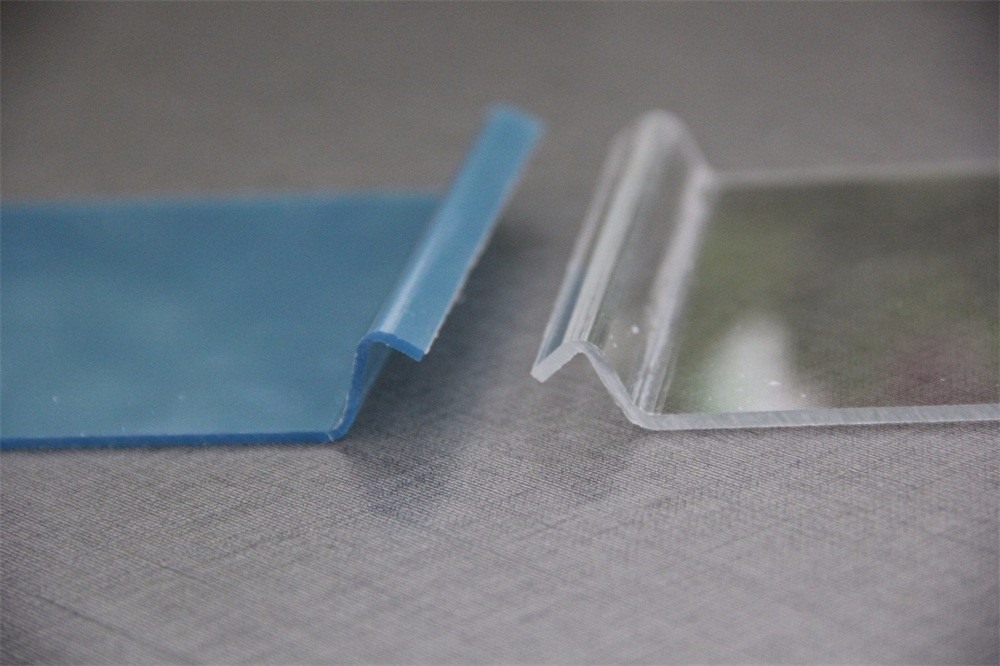

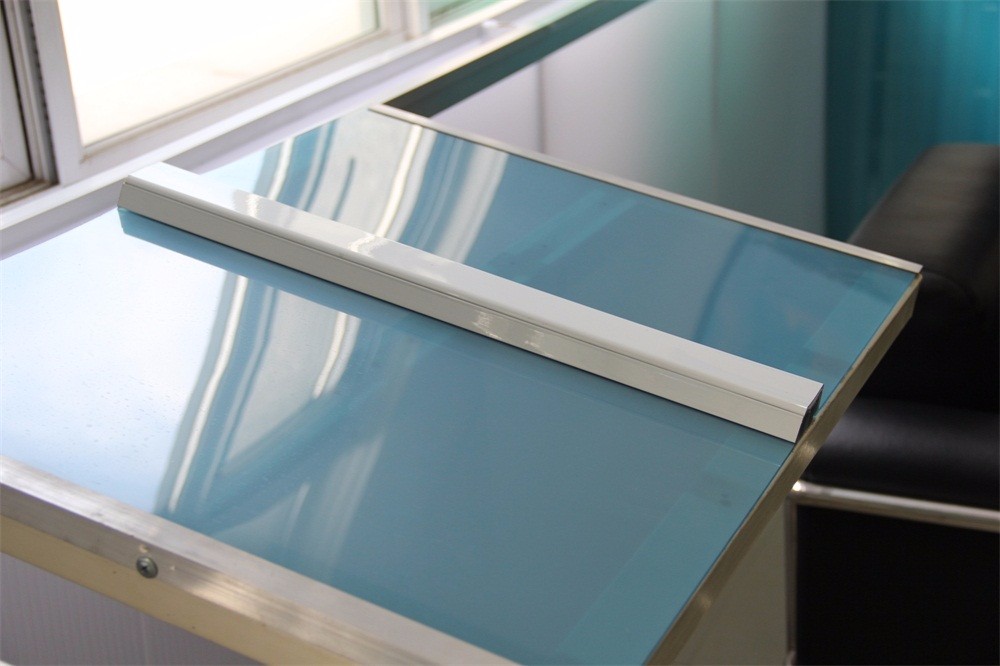

Solid U-panel:
Polycarbonate U-lock solid panels are a building system that is characterized by high light transmission, high load carrying capacity, elegant appearance, versatility, and low maintenance. Through a special connection system, the solid U-shaped panels are 100% waterproof. It is the best material for roofing systems, skylights, stations, large stadiums, etc.
advantage
>100% waterproof
>High transmittance
>Longer service life
> More stable expansion and contraction
> Quiet when it rains compared to hollow systems

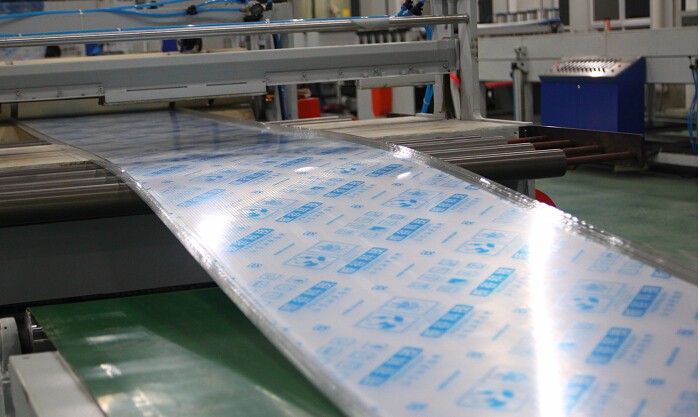

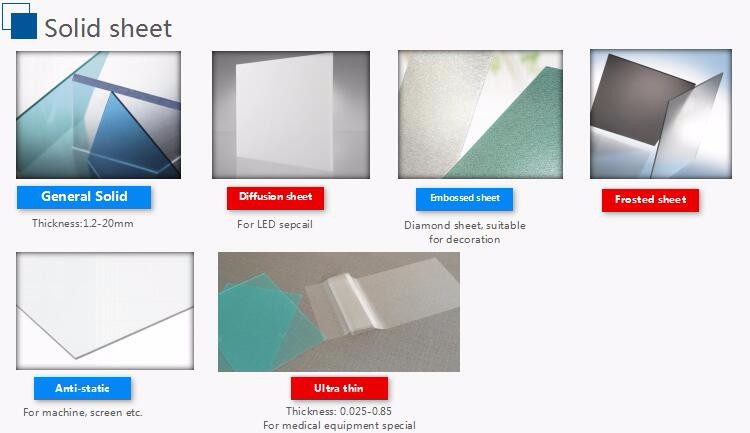

Polyvalley has two polycarbonate solid panel production lines. With advanced equipment, in addition to ordinary dense boards, Jugu can also produce any kind of special function boards, such as LED or screen diffuser boards, anti-scratch boards, anti-static boards, frosted boards, embossed boards and other secondary Processing such as drilling, cutting into irregular shapes, and bending are also available.

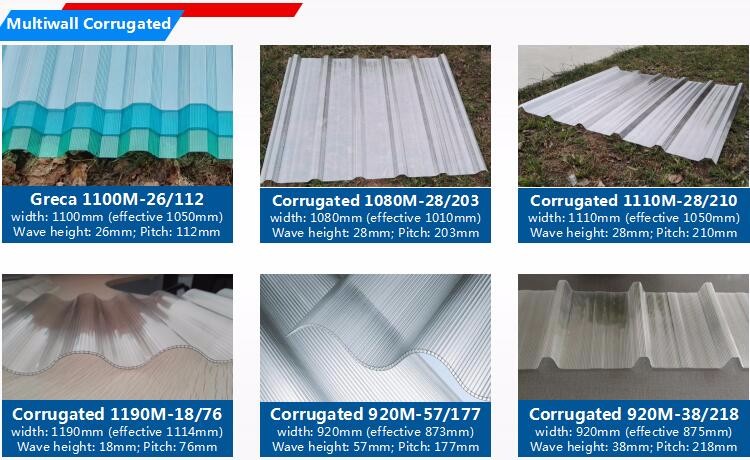

Polyvalley multi-layer corrugated sheets are made of 100% pure Bayer material with a 50 micron UV layer and come with a ten-year quality guarantee against breakage and yellowing. With double-wall R structure, the light transmittance is very high (about 88%). Very small vertical bar distance for great strength. And during installation, the connecting parts of the two panels can overlap perfectly to avoid water seepage.

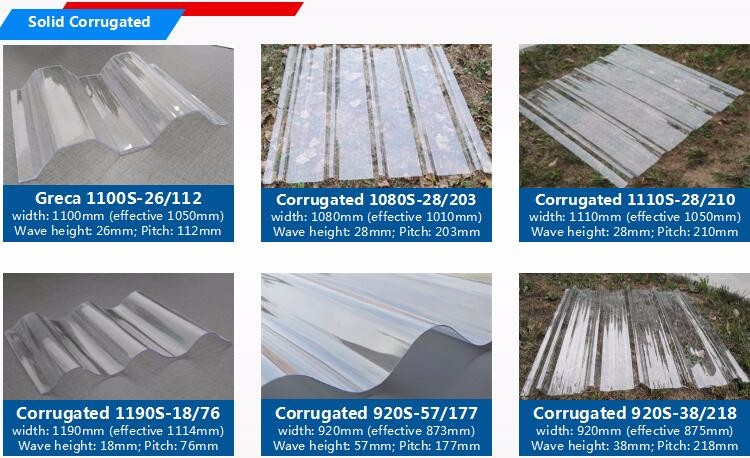

Polyvalley also offers solid corrugated boards, the same corrugated as multi-ply boards. Lighter transmission and higher strength.
Polyvalley offers many different types of corrugated sheet. Custom corrugations are also available. You are always welcome to contact us for more information.
Corrugated board is a new type of polycarbonate board developed by Polyvalley Company, which has the advantages of high light transmission, easy molding, heat insulation, and high load impact. The wave board has a small bend radius so that the pack can be rolled. Ideal for skylights, carports, conservatories and more.
main feature:

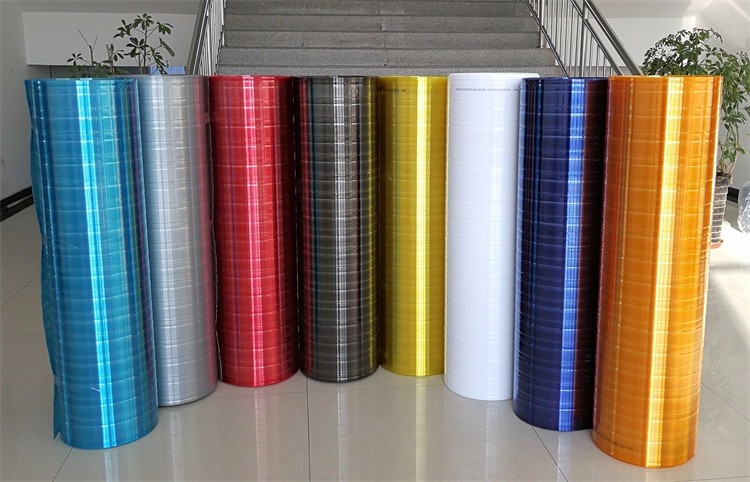

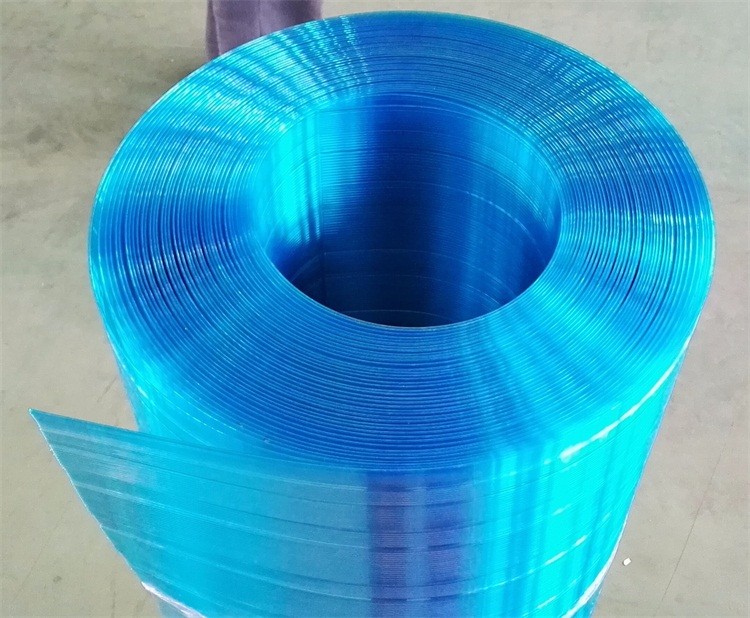

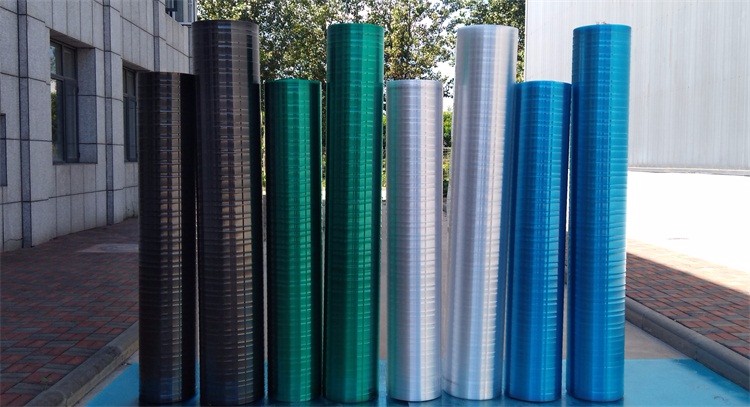

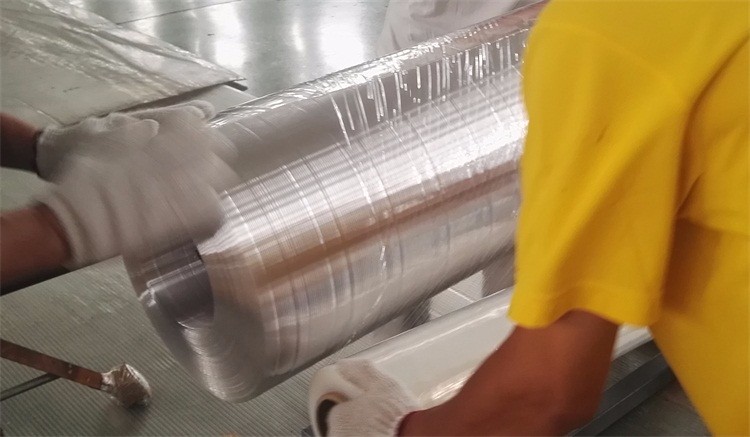

Minimal bend radius and roll-packed for shipping.
The amount of expansion and contraction is small, and it can be lengthened as needed.
High light transmittance: up to 85%, very suitable for greenhouses.
Extremely high impact resistance: corrugated structure, its bearing capacity and strength are 2-3 times that of ordinary flat plates.
Good weather resistance: There is a UV layer on the surface of the corrugated board, which can maintain high light transmittance without yellowing for many years.
Simple and low-cost installation: the corrugated structure allows the direct connection of two panels. It is not only easy to install, low in cost, but also waterproof.
| thickness: | 2-3mm | ||
| Modular Width: | 1220mm, 2100mm | ||
| Effective width: | 1220mm, 2100mm | ||
| length: | Unlimited (can be rolled) | ||
| weight: | 0.65-0.68 kg/square meter | ||
| structure: | 2 wall panels | ||
| color: | Clear, White, Bronze, Blue, Green, Metallic, Orange, Red, etc. | ||

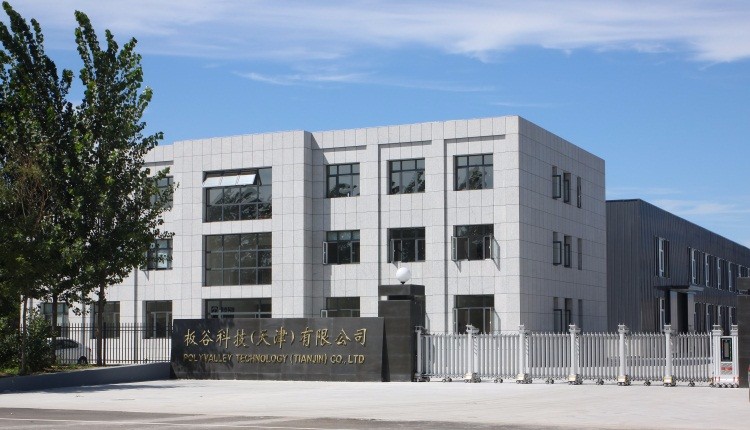

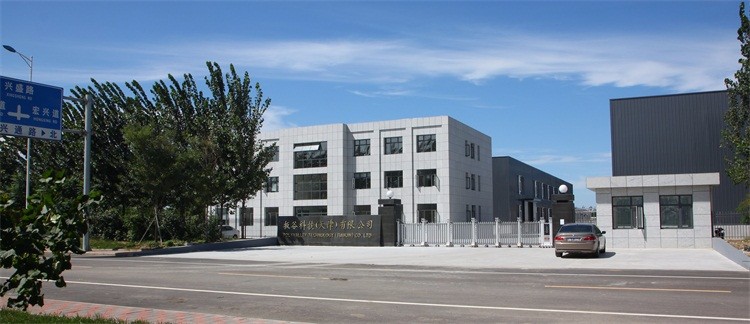

About Jugu
Jugu Technology (Tianjin) Co., Ltd. Jugu Technology (Tianjin) Co., Ltd. is located in Tianjin, the economic center of Bohai Bay, China. It specializes in the research, development, manufacture and self-support export of polycarbonate sheets.

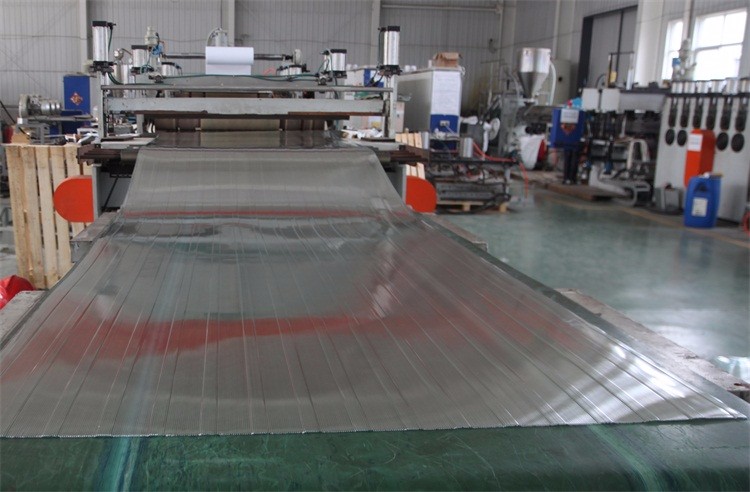

Since its establishment, Jugu has been positioned to develop and manufacture various high-grade PC sheets. It has a number of independent PC sheet co-extrusion production lines with advanced equipment. Hollow boards, solid boards, structural boards, click boards and other Jugu PC boards are all produced with raw materials of internationally renowned brands such as GE and Bayer. Jugu products are not only sold well in domestic provinces, but also exported to Brazil, the United States, India, Japan, Russia, Italy and other overseas countries.

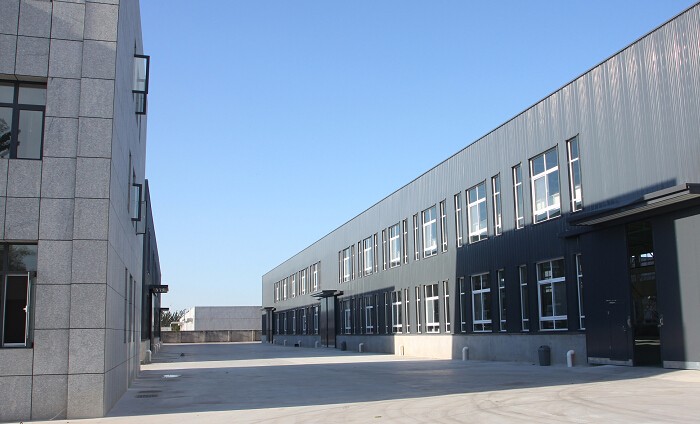

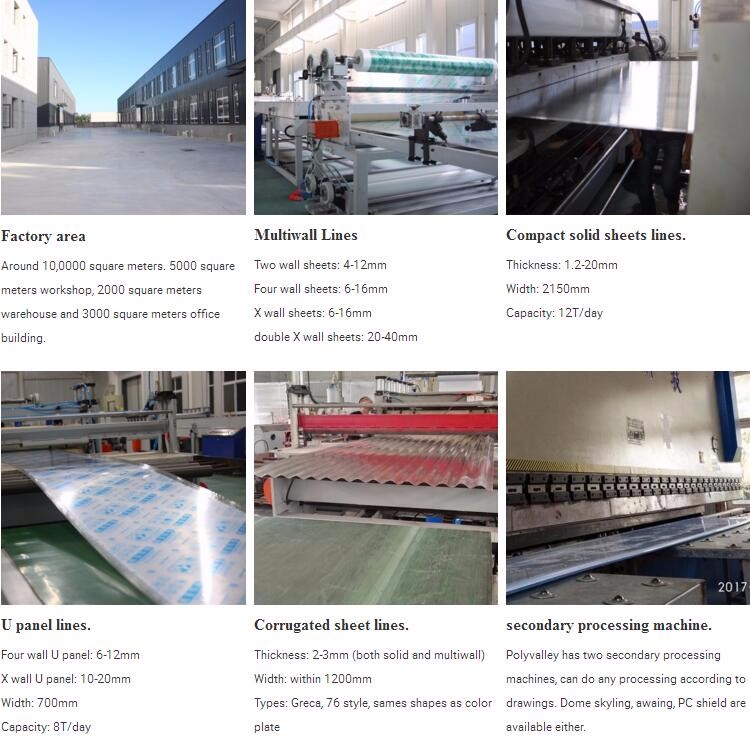

company facilities
