100-347v t8 led light tube 18w plug and play light tube
-
$4.00 / 1 - 999 pieces
$3.00 / >=1000 pieces - 1 piece
- Shenzhen Sunpzone Lighting Electronic Co., Ltd.
- Guangdong, China
- Mr Frank Du
Product Detail
| Lamp Luminous Efficiency (lm/w): | 160 | Warranty (year): | 5 |
| lumen: | 2160-2700Lm | cover: | Clear, milk or striped clear cover |
| Lamp Holder/Base: | G13 | Color temperature (CCT): | 5000K (sunlight) |
| Color rendering index: | 80% | Input voltage: | AC 100-347V |
| Working hours (hours): | 50000 | Input voltage (V): | 100-347Vac |
| Color rendering index (Ra): | 80 | Life: | over 5 years |
| Certification: | (USA&CA) ETL certification, DLC, CE, ROHS, DLC ETL ROHS CE | payment terms: | L/C, T/T, Western Union |
| Color temperature: | 3000-6000k | model: | sun zone |
| Types of: | T8 LED tube | Lighting Solutions Services: | Lighting and circuit design, DIALux evo layout, project installation |
| Packaging Details: | 40pcs/carton, carton size: 125*27*17cm, weight: 13kgs 100-347v t8 led light tube 18w plug and play light tube | Lumen Efficiency: | 120-150 lumens/watt |
| Lifespan (hours): | 50000 | Supply capacity: | 45000pcs per month 100-347v ul dlc LED T8 tube ballast compatible |
| port: | Shenzhen | Supported dimmers: | yes |
| strength: | 18W |

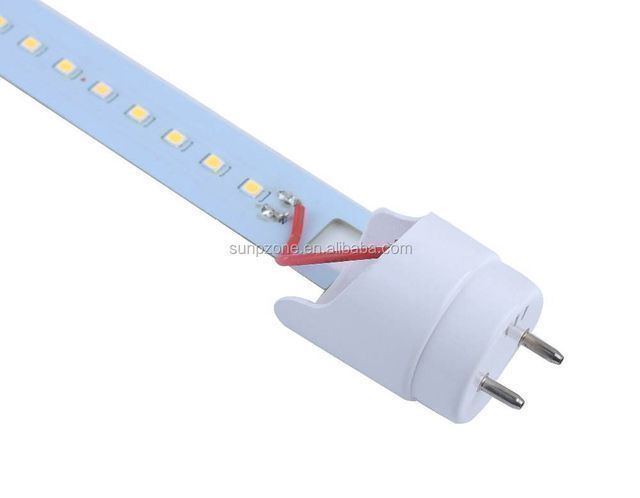

100-347v t8 led light tube 18w plug and play light tube
Great replacement for 4' T8 or T12 fluorescent tubes
feature:
1.100-347v is suitable for most T8 and T12 ballasts.
2.120 degree beam angle uniform light distribution
3.50,000 hours lifetime, more than 10 years in most applications
4. Design Lights Consortium approved and provide 3 years warranty
5. Provides more light than a 32-watt fluorescent tube while reducing power consumption by 44%
6. No mercury or other toxins
7. Replace fluorescent tubes with this compatible tube and avoid initial labor costs. Once a fluorescent ballast fails, there is no need to install a new ballast.
8. This lamp can use AC power directly. Ideal for offices, showrooms, refrigerators, overlay lighting and more.
9. T-8 LED lamps operate at line voltage with or without existing electronic ballasts; one socket is connected to line voltage, or both ends.
10. Heat sink: 6063 extruded aluminum with cooling ribs, providing excellent thermal management
Specification:
1. Tube power: 18W;
2. Lubricating oil luminous flux (lm): 2160-2700LM;
3. Luminous efficacy of lamp tube (lm/w): 120-150LM/W.
4. Color rendering index (Ra>): >85;
5. Input voltage: 100-347Vac;
6. Certification: UL DLC ETL CE RoHS;
7. Color temperature (CCT): 2700K, 3000-3500K, 4000-4500K, 5500-6000K;
8. Base type: G13/FA8/R17D
9. LED light source: epistar chip.
10. Warranty period: 3 years;
11. Working life (hours) 50,000;
12. Working temperature (℃): -40-50;
13: Lamp body material: aluminum;
14: Cover: transparent or milk;
15: Size: diameter 25.4*1200mm.
DLC model: SPZT8B418T
|
Physical Specifications |
|||
|
|
|
||
|
light source |
Epistar |
||
|
size |
Diameter 25.4*00mm. |
||
|
weight |
200 g |
||
|
Material |
Aluminum shell + PC lens (transparent, striped or opalescent) |
||
|
operating temperature |
(-20)~40°C (-4~104°F) |
||
|
degree of protection |
IP44 |
||
|
Electrical Specifications |
|||
|
LED power(W) |
18 watts |
||
|
recommended replacement |
18Watt traditional fluorescent tube |
||
|
Power Efficiency |
>85% |
||
|
Input voltage |
100-347V AC |
||
|
Frequency Range |
50 ~ 60 Hz |
||
|
life |
>5 years |
||
|
Optical Specifications |
|||
|
LED Luminous Efficiency |
120-150 lumens/watt |
||
|
total lumens |
Width: 810 lumens |
Light wave: 900lm |
CW: 980lm |
|
Color Rendering Index (CRI) |
Radium>80 |
||
|
light decay |
<4% at 3000 hours |
||
|
Beam angle |
Horizontal axis 120° Vertical axis 60° |
||
|
Lighting (E) |
(height = 1 meter) = 121lux |
||
|
(Height = 2 meters) = 30.3lux |
|||
|
(Height=3m)=13.5lux |
|||
|
Effective lighting area |
(height=1 meter) = 2.1 x 2.2 meters |
||
|
(Height=2m) = 4.8 x 2.6m |
|||
|
(Height=3m) = 7.8 x 4.6m |
|||
|
temperature color |
Warm White (WW): 2700~3500K |
||
|
Pure white (PW): 4000~5500K |
|||
|
Cool White (CW): 6000~7000K |
|||
|
Packaging Information |
|||
|
Package |
Bubble protection or carton |
||
|
Packing Quantity |
40pcs/box |
||
|
Carton size |
125*27*17cm |
||
|
carton gross weight |
13 kg |
||
|
Qty |
16000pcs/20'GP, 32000pcs/40'GP |
||
100-347v t8 led light tube 18w plug and play light tube
40pcs/carton, carton size: 125*27*17cm weight: 13kgs
Container loading quantity:16000pcs/20'GP, 32000pcs/40'GP
100-347v t8 led light tube 18w plug and play light tube
1. Prompt reply within 24 hours
2. Well-trained, professional and experienced salesman, fluent in English
3. Welcome OEM&ODM
4. The factory provides 3-5 years warranty for our LED lights.
5. During the warranty period, the factory is responsible for repairing or replacing any defective products.
6. The factory will keep your sales area, design concept and all your private information confidential.
1. Payment terms: T/T 30% deposit in advance, 70% balance before delivery;
Western Union and small amount Paypal are also accepted.
2. Delivery time: 3-5 days for sample, 7-12 days for normal order
3. Shipment: UPS/DHL/FEDEX/TNT or by sea.
4. Shipping port: Shenzhen
5. Discounts are offered based on order quantity.
