Yellow identification cable label with tie
- $0.30 / >=200 pieces
- 200 pieces
- Suzhou Volsun Electronics Technology Co., Ltd.
- Jiangsu, China
- Ms Joe Lu
Product Detail
| Rated temperature: | 125 degrees | Flammable: | VW-1 cable label with zip tie |
| Supply capacity: | 500000 pieces of cable labels with ties per day | Certification: | ROHS cable label with cable tie |
| place of origin; place of origin: | Jiangsu, China | sample: | Free cable labels with ties |
| Packaging Details: | As per condition or as your requirement for cable labels with zip ties | Color code robustness: | SAE-AS 81531 and MIL-STD-202F/215J |
| usage: | Identification | model: | MTVLU |
| property: | Excellent physical and chemical | brand: | wolson |
| Shrinkage: | 2:1 Cable Labels with Ties | port: | China Shanghai |
| deliver goods: | Fast express with competitive price | payment terms: | L/C, T/T, Western Union |
Yellow identification cable label with tie
describe
MTVLU-yellow logoCable labels with tiesMade of high-energy electron beam bombardment cross-linked environmentally friendly polyolefin. yellow logoCable labels with tiesFasten on large cables and wire harnesses with cable ties to meet the environmental protection and economical labeling needs of the electronics, communications, and power industries. yellow logoCable labels with ties
feature
Halogen-free material, suitable for identification purposes in electronics/electricity, communication, and construction industries
No need to disconnect electrical circuits for installation, removal or maintenance
Uses standard cable ties with no extra work and easy handling
Temperature resistance, rated temperature, 125°C
High flame retardancy, VW-1
RoHS compliant, SONY SS-00259 compliant
Permanent marking, not melting at high temperature, not brittle at low temperature, resistant to scratching, rubbing and grinding

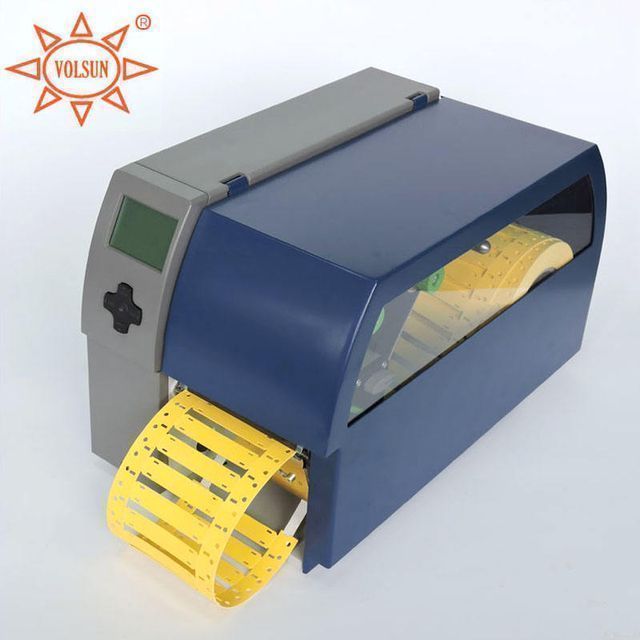

Computer printable, any characters and logos are easy to design.
technical date
which performed | index | Test Methods | ||
Typical performance | unit | state | ||
tensile strength | MPa | underage | ≥10.3 | ASTM G 154, MIL-DTL-23053E ISO 37,500 mm/min 175°C, 168h, ISO 188 |
Heat Aging/Post Fluid/UV Aging | ≥6.9 | |||
elongation at break | % | underage | ≥200 | |
After Heat Aging/Fluid | ≥100 | |||
secant modulus | MPa | underage | <173 | ASTM D 882 |
withstand voltage | V | underage/adult | 2500V, no breakdown within 60 seconds. | IEC 243, ASTM G 154 175°C, 168h, ISO 188 |
Dielectric strength | MV/m | before aging | ≥19.7 | |
Heat Aging/Post Fluid/UV Aging | ≥15.8 | |||
volume resistivity | Ω.cm | underage | ≥1014 | International Electrotechnical Commission 93 |
Dielectric constant | - | underage | - | ASTM 150 |
water absorption | - | underage | ≤1.0 | ASTM 570, 23°C, 24 hours |
Bare Copper Corrosion | - | underage | no corrosion | 23°C, Rh 95±5%, 24h 175°C, 16 hours |
heat shock | - | underage | No cracks, runs, drips | Winding onto specified mandrel, 225°C, 4h |
cold elastic | - | underage | no cracks | Winding onto specified mandrel, -30°C, 1h |
flammable | - | underage | VW-1 | IEC 60332-1-3 Ed.1.0b:2004 |
smoke density | - | underage | - | Standard 5510-2 |
toxicity index | - | underage | - | BS 6853:1999 |
structure
standard
Material standard: UL224, CAN/CSA C22.2
Color Code Reliability: SAE-AS 81531 and MIL-STD-202F/215J
size
Packaging Information
SGS certification
company exhibition
www.szvolsun.com
