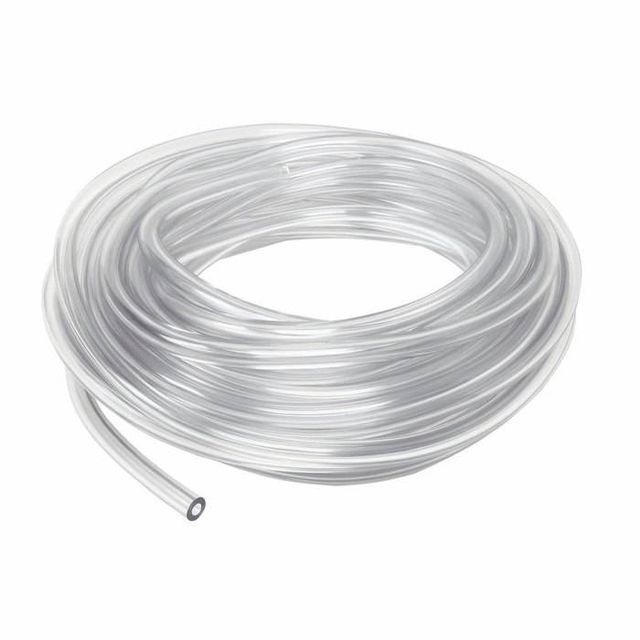

New Arrival ROHS REACH 2-20mm inner diameter clear vinyl tube soft clear pvc tube
- $0.05 / >=500 meters
- 500 meters
- Zhejiang Zhongtian Electrical Jacket Co., Ltd.
- Zhejiang, China
- Ms Sunny Zhang
Product Detail
| Corrosion resistance: | Q/HT-2004 | port: | Ningbo/Shanghai |
| Packaging Details: | Inner packing: PE bag Outer packing: carton | temperature: | 70/105℃ |
| brand: | Zhongtian | shape: | round or square |
| model: | tube | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
| application: | For complete insulation of cables. | place of origin; place of origin: | Zhejiang, China |
| Material: | pvc | Package preview: | |
| Insulation resistance: | DC 500V, insulation resistance R≥200MΩ | Supply capacity: | 500000 pieces per day |
| Dielectric withstand voltage: | AC 2500V/Min (5mA) no breakdown | tensile strength: | High |
Product Description

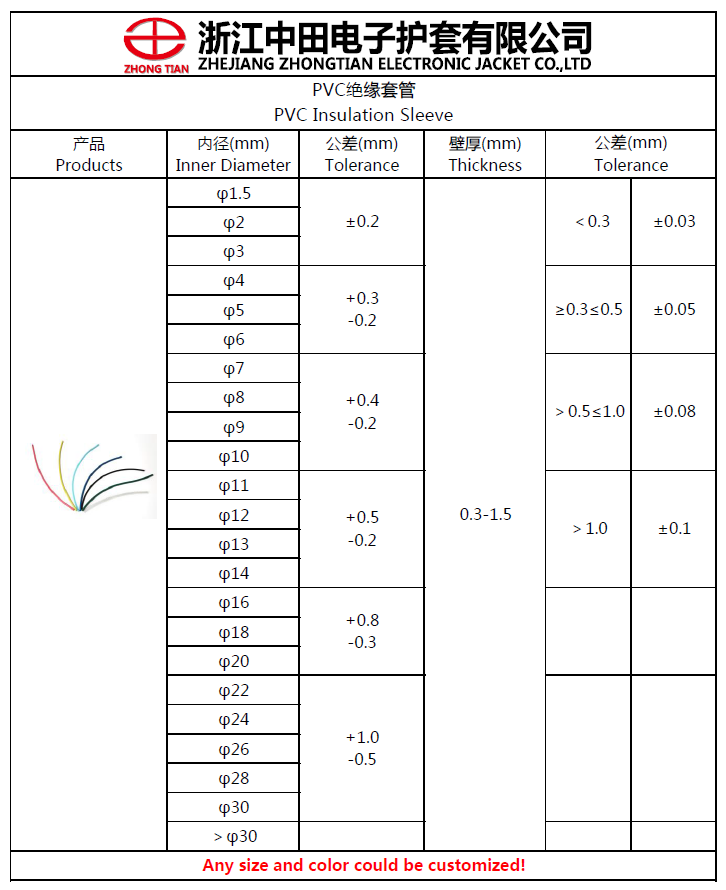

Specification
processing services | forming |
product name | PVC cable sleeve |
Material | Vinyl |
the inside diameter of | 1.5mm - 30mm |
thickness | 0.3mm - 2.0mm |
feature | Smooth, flexible and durable - won't crack, rip or tear |
color | black/white/yellow/red/blue/gray/transparent |
Certificate | RoHS/REACH/UL |
hardness | 80 Shore A |
temperature | 70℃/105℃ |
Insulation resistance: | DC 500V, insulation resistance R≥200MΩ |
Dielectric withstand voltage: | AC 2500V/Min (5mA) no breakdown |
Aging test | 168Hrs@136℃ without aging |
application | Usually used for full insulation of cables, etc. |
brand introduction
Our brand ZHONG TIAN was registered and recognized in 2005, enjoying a good reputation on the brand. We have done a lot of marketing promotion to build a better brand reputation. We recognize the importance of brand marketing power. For us, quality is the first step, and we seek long-term cooperation.In China, we are a leading manufacturer of PVC casing. As long as they are in this business field or buy this product, almost everyone knows our brand ZHONG TIAN. Our brand still has a certain influence in China, and now we are working hard to build our brand awareness abroad.
