High Quality 365nm 385nm UV Curing Lamp UV Curing Lamp 3kw

Product Detail

place of origin; place of origin:Hebei chinaSelling point 6:Lan Yu has 30 years of curing lamp manufacturing experience
Warranty (year):1 yearInput voltage (V):220V 380V
power supply:air conditionerpayment terms:L/C, D/P, D/P, T/T
port:TianjinSelling point one:American General Electric, Raesch Quartz German quartz glass material.
Base type:Ceramic or plastic, can be customizedSupply capacity:5000 pieces per month
Supported dimmers:Do notswitch mode:manual button
UV light power (μW/cm2):80Working hours (hours):800
Diameter:Minimum 17mm, maximum 32mm, special can be customizedProduct weight (kg):0.2
light source:Quartz tubeSelling point four:Can be customized, support OEM.
Lamp Luminous Efficiency (lm/w):100Wavelength (nm):365
application:Household, medical, hotel, office, printing industryPackaging Details:Packaging details: 1. Bubble film 2. Cylinder 3. Carton
Lighting Solutions Services:Lighting and Circuit Designbrand:blue rain
Selling point five:CE IEC certification.Bulb Power:Conventional 1-20KW, special can be customized
Lifespan (hours):1000Selling point two:Guaranteed life of 800 hours.
Tube length:The shortest is 155mm, the longest is 1800mm, special can be customizedApplicable area (㎡):3
Peak wavelength:365 nmSelling point three:High cost performance.
Package preview:portable:Do not
Product Description

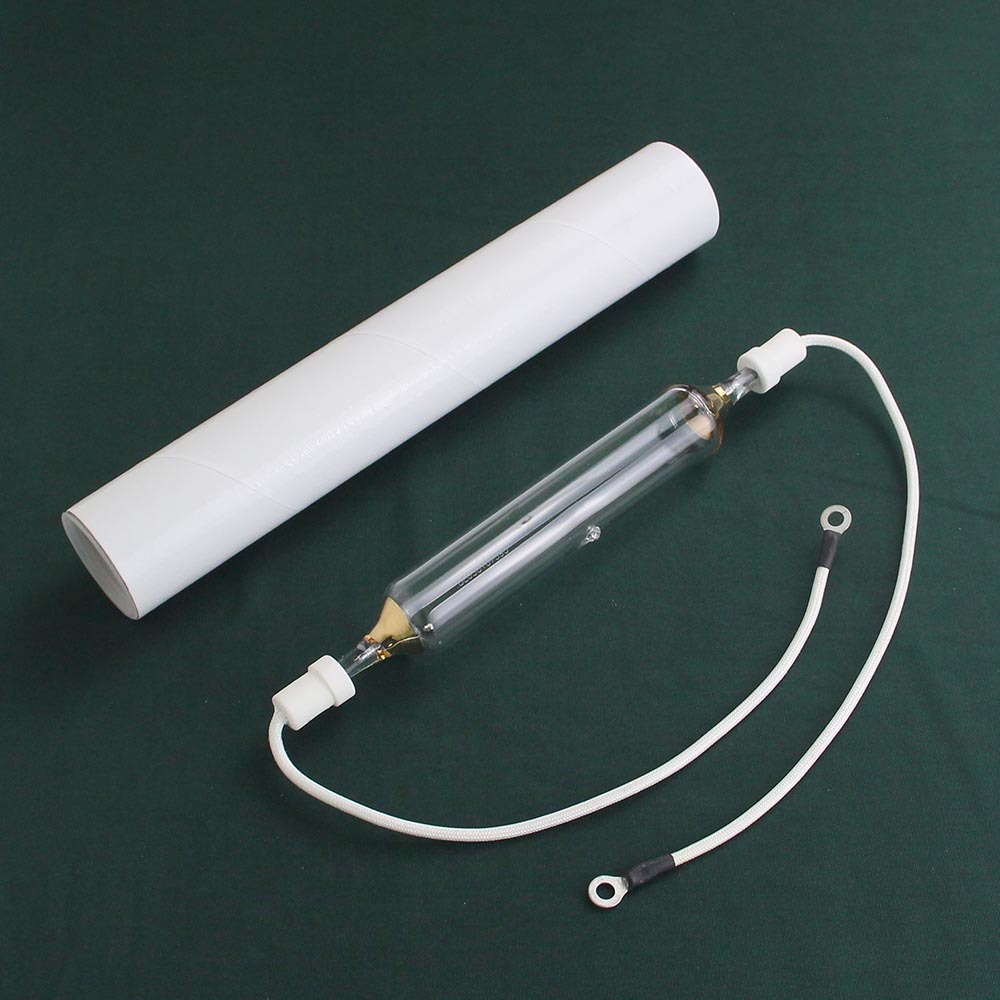

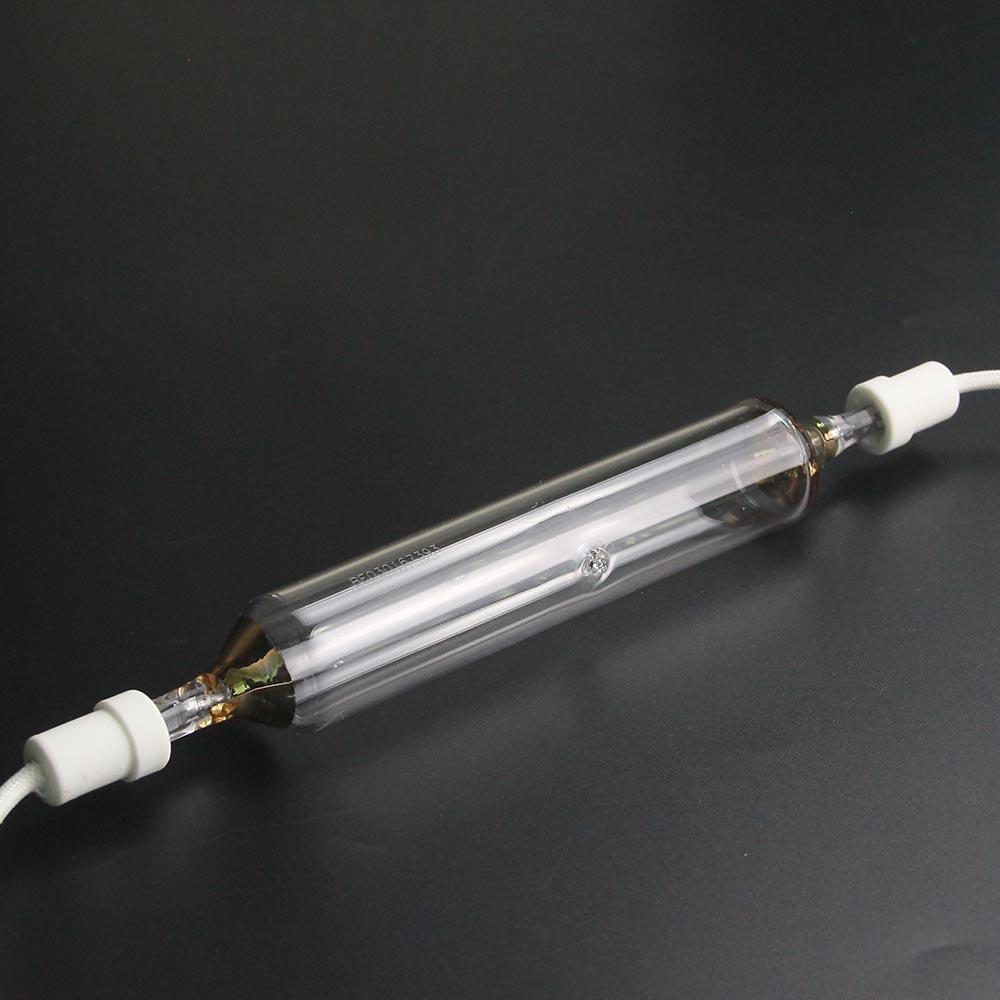

Wholesale High Quality UV Curing Mercury Lamp
product name
Standard UV Curing Mercury Lamps
brand
blue rain
full
HG
watt
regular/custom
arc length
custom
pipe
General Electric of the United States, Raesch Quartz of Germany
Warranty
1 year
certified
CE certification
application
Sealing and curing of printing, billboards, glass, ceramics, electronic parts, circuit boards, wood, plastics, liquid crystals, etc.
other industry.
UV curing lamps you can rely on:
Lanyu UV lamps are suitable for a wide range of medium pressure mercury arc lamps and are suitable for all known UV curing systems. These lamps provide excellent performance with an extremely long life and consistent UV output. Lanyu UV curing lamps are used worldwide for curing inks and coatings in the printing, packaging and labeling industries, as well as in a wide range of industrial applications including fiber optic cable production, wood products and electronics. All Lanyu UV curing lamps are made of high transparency quartz glass. Quartz has the characteristic of high transparency to ultraviolet rays, especially at the short-wave end of the spectrum, more than 90% of the generated ultraviolet energy is transmitted through quartz. Electrode assemblies are manufactured from the highest quality materials to ensure a long and reliable bulb life. Lanyu quality standards not only ensure that each lamp is manufactured to the strictest specifications, but also ensure consistent lamp performance.
1. The high-quality quartz tube is resistant to high temperature, the ultraviolet light decays slowly, the ultraviolet transmittance is as high as 99%, and the lamp life is long.

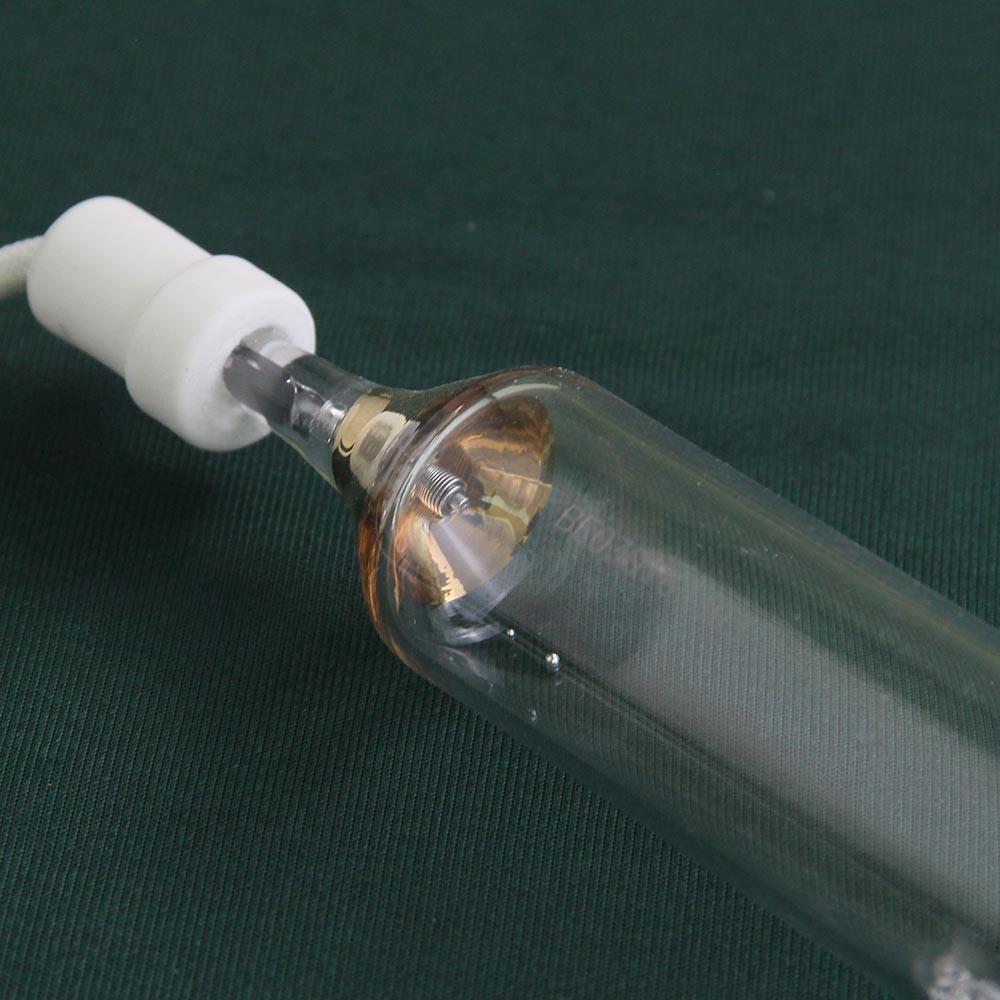

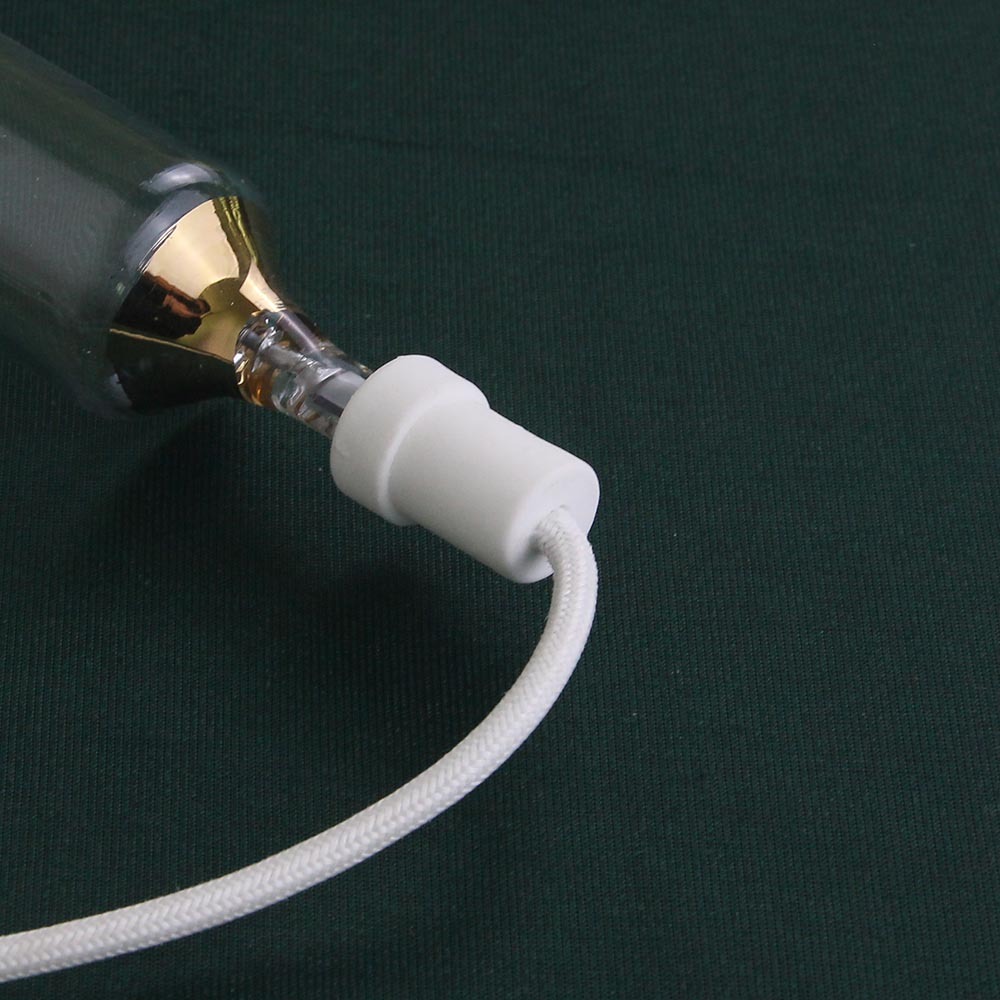

2. Pure tungsten electrode Pure tungsten electrode can enhance ultraviolet light irradiation, stable performance and remarkable curing effect.
3. The high-quality ceramic lamp holder is made of high-quality ceramic material, which is resistant to high temperature and not easy to age.
A glimpse of part of the work of our factory production staff

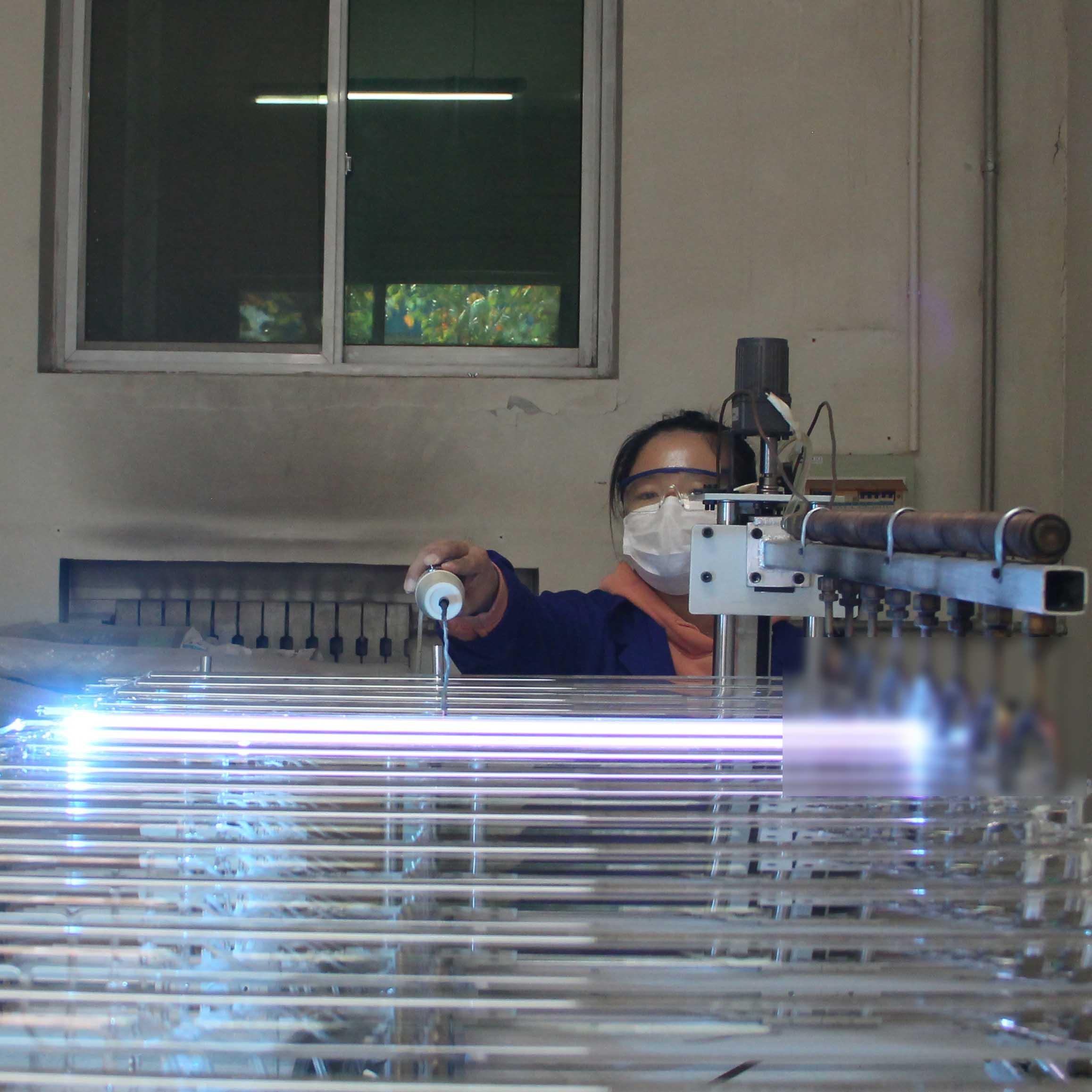

Workers are debugging equipment

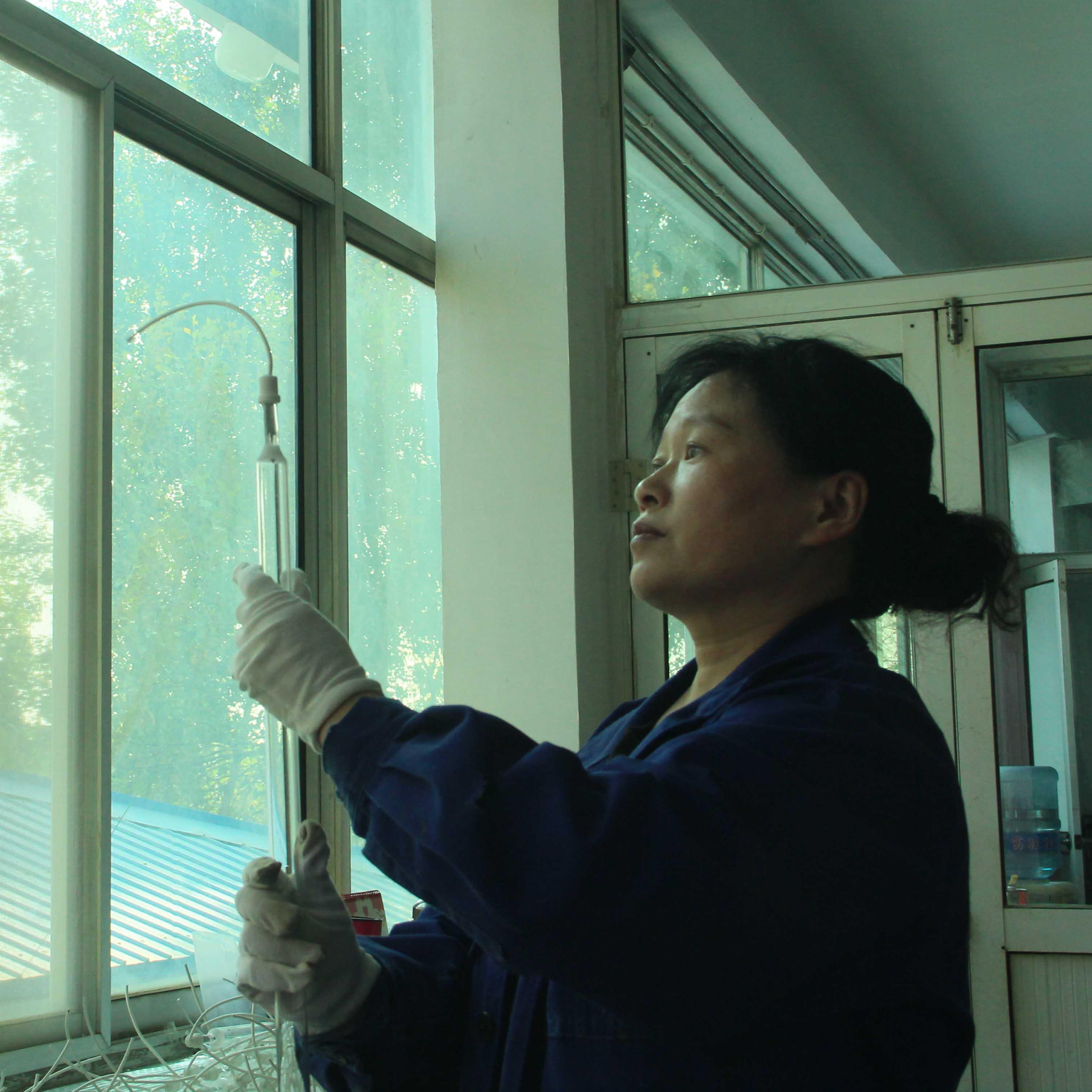

Workers are checking the appearance of finished curing lights

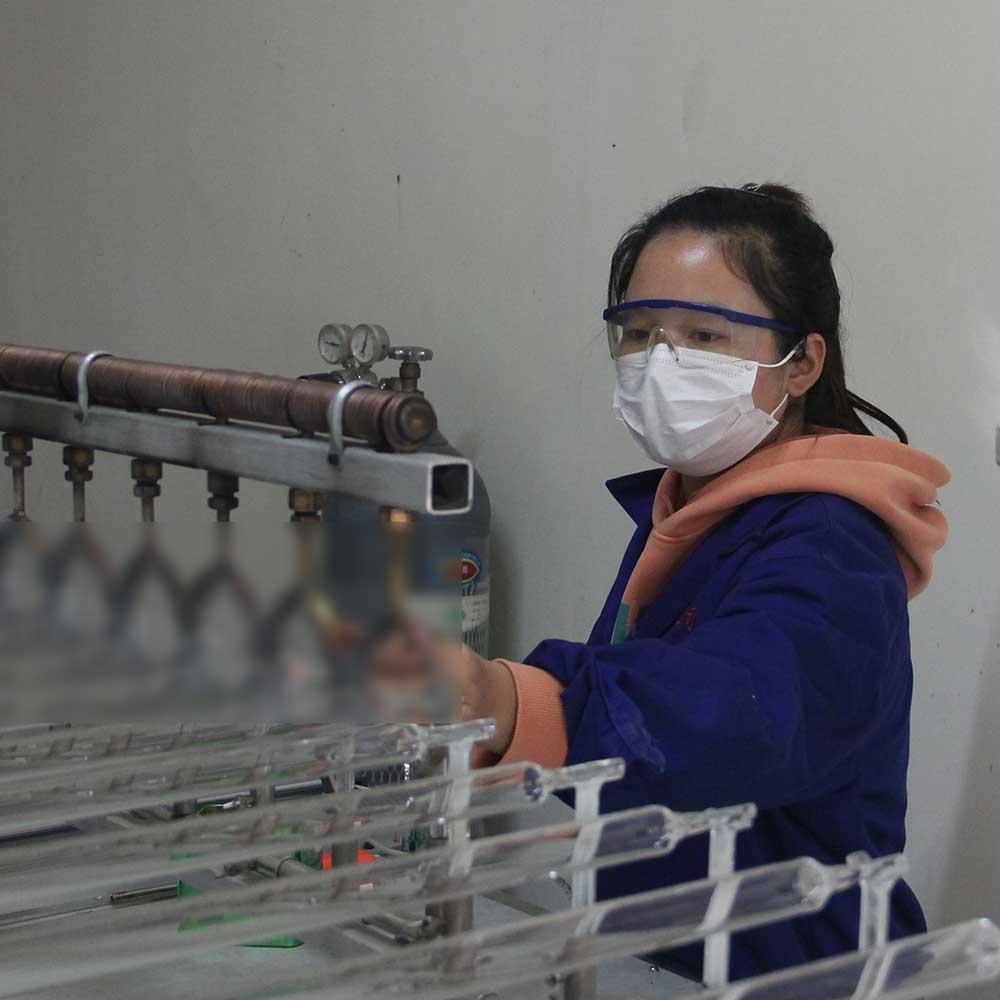

Workers are energizing and draining lamps

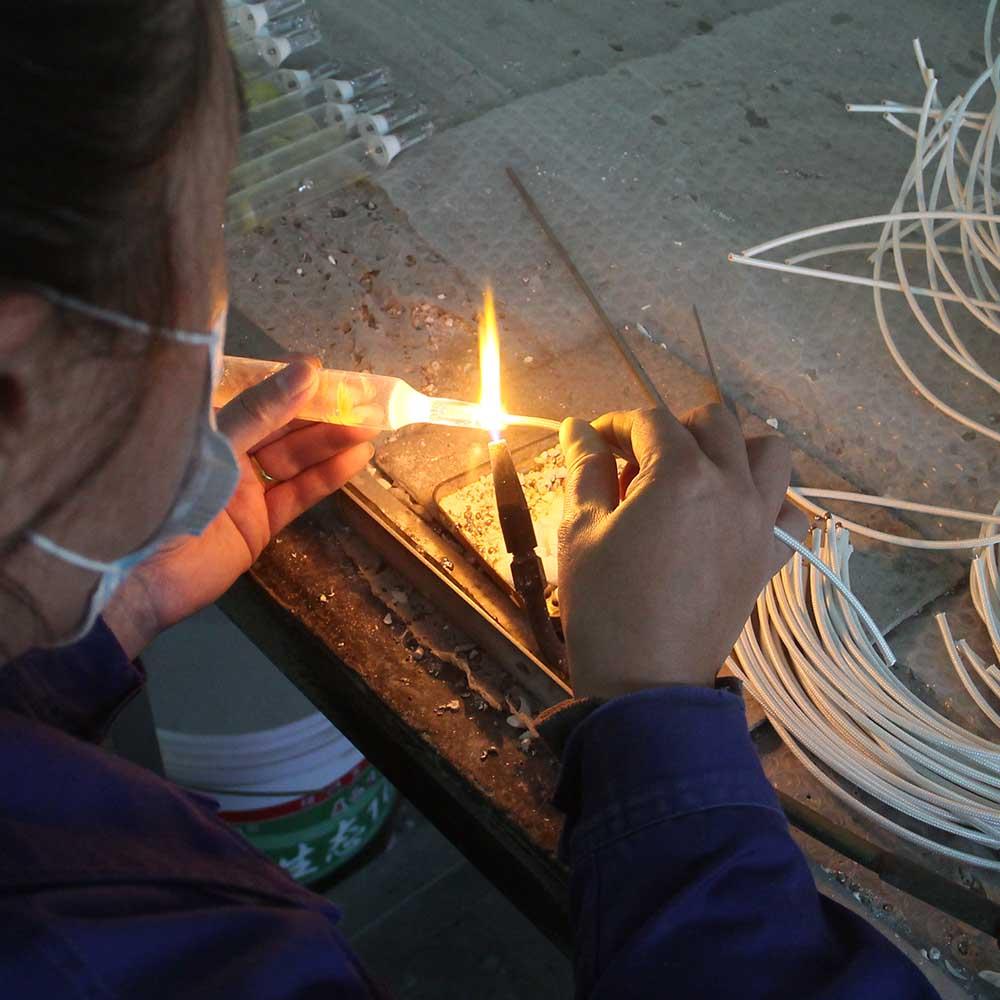

Workers are installing the leads of curing lights
Scope of application:
The spectrum is mainly distributed in the range of 200nm and 450nm, and the peak is 365nm. It is mainly used as an ideal light source for surface coatings such as printing plate making, flexible packaging, color printing, furniture industry, and decorative materials. , Paper disappearance and printing cans, aging of polymer compounds, photosensitive flame retardants and semiconductors, photosensitive character inks on printed circuit boards and signs.

Applicable industries are divided into:
UV printing: offset, letterpress, flexo, inkjet, gluing, hot-melt, compact printing; UV painting: for CD; for electronic components: such as printed circuit boards and resistors; film coating; photoconductor; Wood, plastic; UV coating of three-dimensional objects made of plastic, glass and wood; UV disinfection: sterilization of food packaging materials, air, packaging films, taps; UV adhesion: for DVD; electronic components, displays , sensors; for glass: such as jewelry, furniture; plastic parts; precision mechanical parts; medical technology: such as needles, catheters; optical components: such as lenses, prisms and light guides; UV embedding: glass industry, electronic and mechanical components, medical UV light curing in technology, optical product manufacturing and stone manufacturing.

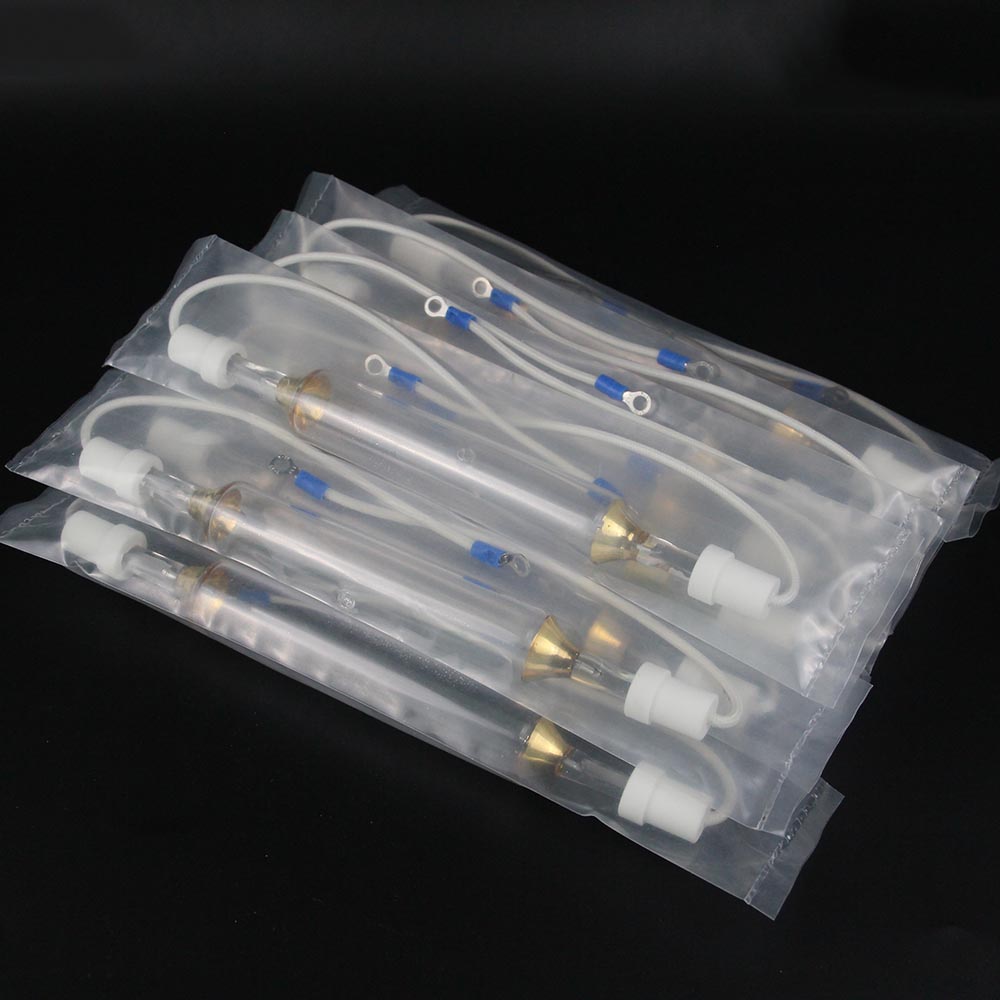

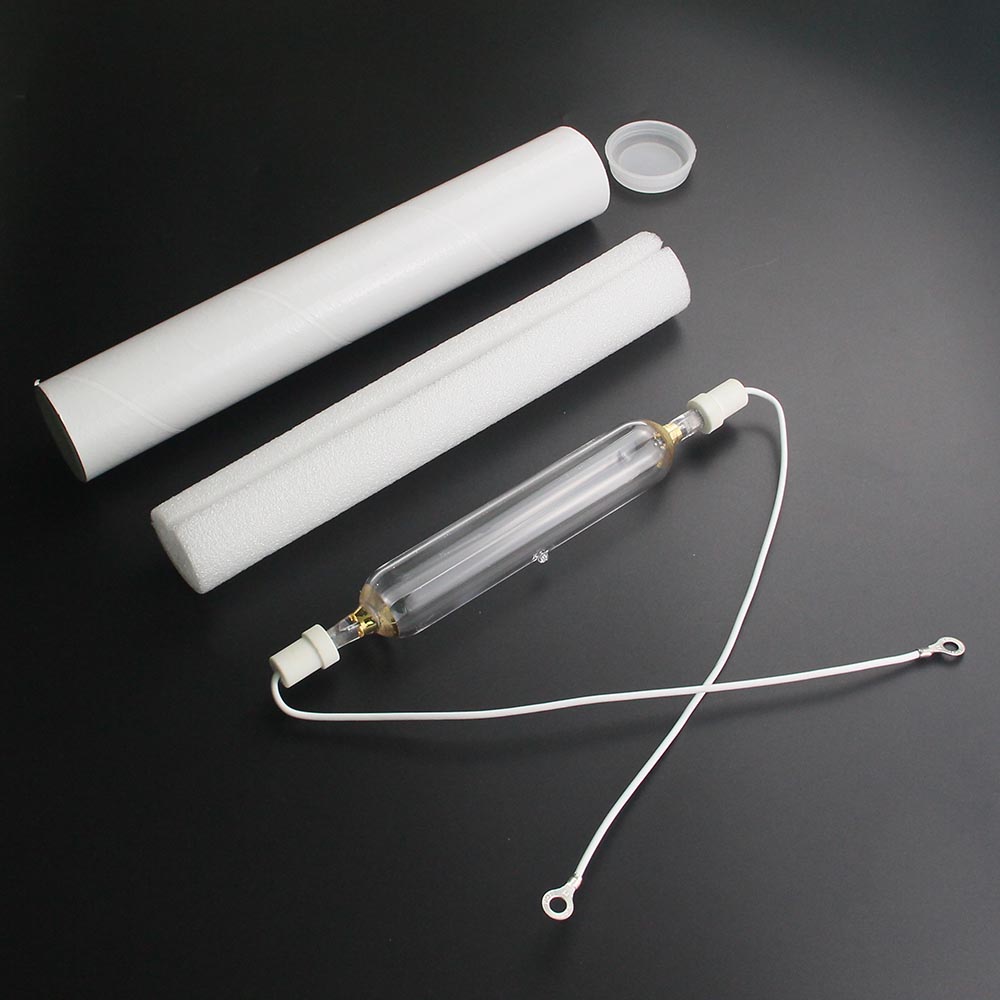

Packaging and delivery:
Delivery method by DHL, UPS, TNT.

After-sales service rest assured:
1. Advanced technical support
2. Buyback discount
3. One year warranty
4. Parcel Tracking
5.Confidentiality of Customer Information
(Each lamp will be tested by our quality control department before shipment. CompanySolemn Promise: If the bulb is damaged during transportation and any quality problems, we will reship it after receiptcomfirmed. )

Tip: The price may not be the final price of your order.
Please contact youSecondNow at the best price!
The parameter range of UV lamp produced by Lanyu
power output
500w to 40kw
wavelength
320nm to 450nm
arc length
50mm to 2000mm
Diameter
18mm to 32mm
power density
30/60/80/120/160/200 width/cm
spectrum
UVA/UVB/UVV
full
Mercury/Metal Halide/Gallium Iodide
Material
General Electric of the United States, Raesch Quartz of Germany
end cap
Ceramic/Metal (more than 100 kinds)
service career
800 to 1000 hours
UV curing lamps you can rely on:
↣ Request a quote from Lan Yu today!↢
We design, manufacture and supply UV curing lamps.
1. Electromagnetic Spectrum
Ultraviolet light on the electromagnetic spectrumUV-reactive inks and coatings require a high-intensity UV light source to initiate a chemical reaction that cures the ink or coating almost instantly. Ultraviolet light forms a small part of the electromagnetic spectrum, which ranges from radio waves at the long-wave end to x-rays and gamma rays at the short-wave end. The diagram here shows how UV wavelengths fit into the electromagnetic spectrum.

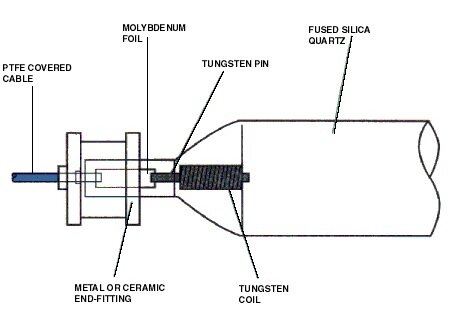

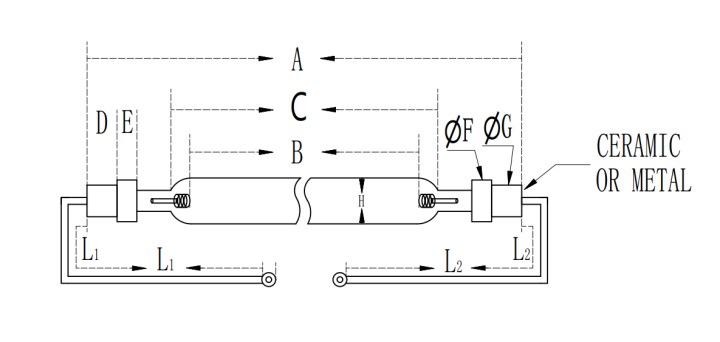

2. Typical UV lamp structure
Treatment Methods and Lighting StylesThe UV wavelengths most suitable for curing inks are between 200 and 400 nanometers. Several types of lamps are suitable for producing these wavelengths, mainly high-pressure mercury arc lamps, electrodeless lamps, and medium-pressure mercury arc lamps. High pressure mercury arc lamps are usually constructed of the capillary type and require a water jacket to maintain the correct operating temperature. These lamps are limited to short lengths and lamp life is typically less than 1,000 hours.
As the name implies, electrodeless mercury arc lamps have no electrodes. The arc is established by the generation of microwaves. These types of lights usually come in two standard lengths, 6 inches and 10 inches. By far the most widely used is the medium pressure mercury arc lamp (a type of MPMA lamp). This can be air-cooled or water-cooled and manufactured in various lengths. Single lamps two meters long are not uncommon, and MPMA lamps can be expected to last more than 1000 hours.

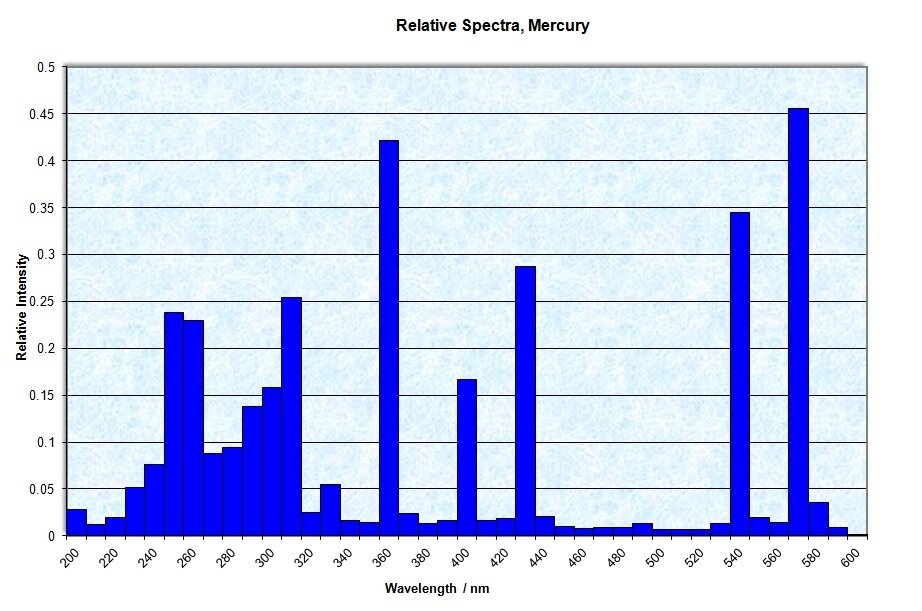

3. Spectral output of MPMA lamps
Typical Lamp Spectral Output
As mentioned earlier, obtaining the precise UV wavelengths suitable for curing UV inks and coatings is important if the system is to be efficient.
MPMA lamps emit not only ultraviolet light, but also wavelengths in the visible and infrared spectrum. In fact, all lamps emit about 20% of UV rays,
60% infrared light and 20% visible light. Therefore, it is important when selecting lamps that output in the UV spectrum
Should be carefully checked. UV spectral output is sometimes represented graphically, showing scaled output
Important UV wavelengths. A diagram of a typical MPMA lamp is shown here.
4. Lamp life
Medium pressure mercury arc lamps generally do not fail suddenly like ordinary household light bulbs. Efficiency drops relatively slowly until insufficient UV light is emitted for the lamp to cure effectively. This decrease is mainly caused by the decreased UV transparency of the quartz sheath and depends on many factors:- lamp cooling efficiency, rated power, rated current of the electrodes, electrode cooling efficiency, contamination (dust) of the outer surface of the lamp, etc.) and On-off level.When used correctly, Lanyu UV curing lamps are guaranteed to produce a high level of curing efficiency for at least 1,500 hours, and when handled properly they are still capable of delivering at least 80% of their original output.
Custom Curing Lights
Get the luminaire you need now:
(Quotes are free and we offer over 8,000 designs to choose from)

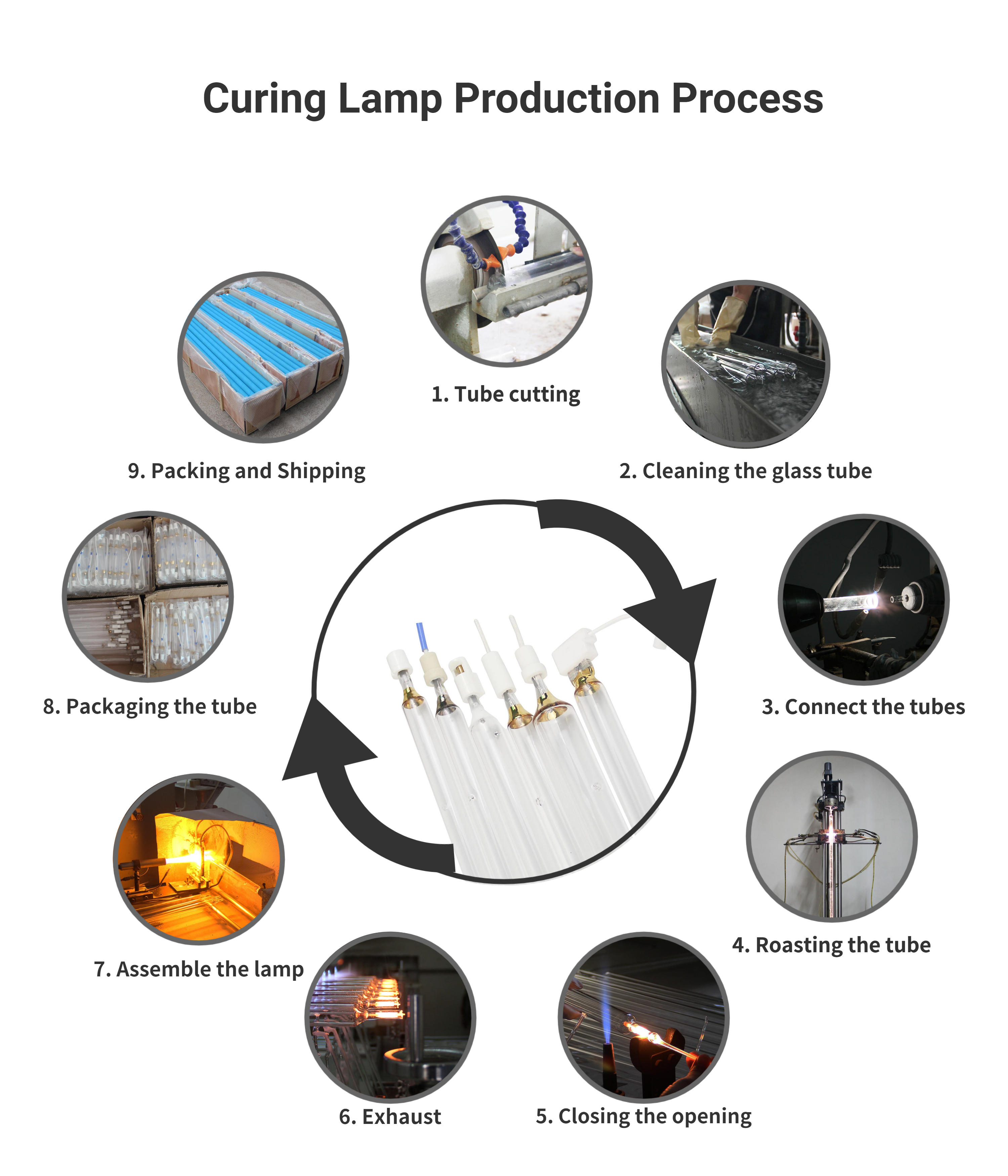

production process
