DS-KV6113-WTE1 Haikang Original Video Doorbell IP Access Control Video Intercom 2021 Best Selling in Stock and Fast Shipping

DS-KH6113-WTE1

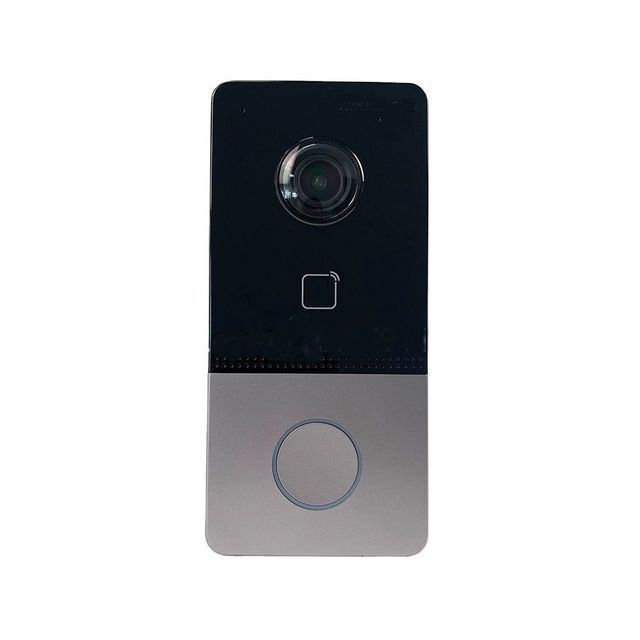

Plastic villa door station with card reader and 485 indicator lights

• Support Wifi (DS-KV6113-WPE1 model only), easy to set up, no wiring required
• Support web configuration
• Beautiful industrial design, IP65, integrated with 2 indicator lights;
• Built-in Mifare card reader, 1-way indoor unit access control;
• Noise Suppression and Echo Cancellation
• 2MP HD camera with IR supplement
• Standard PoE/ 12 VDC

• System parameters
• Operating SystemEmbedded Linux operating system
• ROM16M, 32M
• Memory 256M
• CPU Embedded MCU Processor

• display parameters
• screen size/
• Operation method/
• Types of/
• resolution/

• video parameters
• lens 1
• resolution

  Mainstream: 1920×1080p, 720p

  Secondary code stream: 704×576

• FOV Horizontal: 129° Vertical: 75°
• WDR True Wide Dynamic
• Supplements LightIR Supplements
• Video compression standard H.264

• audio parameters
• Audio compression standard G.711 U
• Audio input Built-in omnidirectional microphone
• Audio output Built-in speaker
• Audio compression bit rate 64 Kbps
• Audio Quality Noise Suppression and Echo Cancellation
• Volume adjustmentAdjustable

• capacity
• user capacity/
• surface capacity/
• Card capacity/
• Link network camera capacity 1

• Network parameters
• Communication protocol TCP/IP, RTSP
• Wired network 10/100Mbps adaptive Ethernet
• Wi-Fi standard support
•
  not support.
• 3G/4G standard/
• Receive frequency 2.4 to 2.4835GHz
• Transmit frequency 2.4 to 2.4835 GHz
• Bandwidth 20 to 40 MHz
• frequency power

  802.11b: 16dBm +/- 1.5dBm

  802.11g: 15dBm +/- 1.5dBm

  802.11n(ht20): 14dBm +/- 1.5dBm

  802.11n(ht40): 12dBm +/- 1.5dBm

• device interface
• Alarm input 4
• network interface 1
• tampering 1
• exit button 1
• RS-4851
• USB0
• Wiegand 0
• TF card 0
• Alarm output 0
• lock control 1
• Door contact input 1
• Power port 1

• show
• Multi-Factor Authentication 2000

• General
• button 1
• Installation method surface mount
• Indicator 2
• 265 grams
• Protection class IP65
• Operating temperature -40° C to +55° C (-40° F to 131° F)
• Operating humidity 10% to 95%
• Dimensions 138mm x 65mm x 27mm
• Battery/
• Application environment outdoor
• Power consumption < 10W
