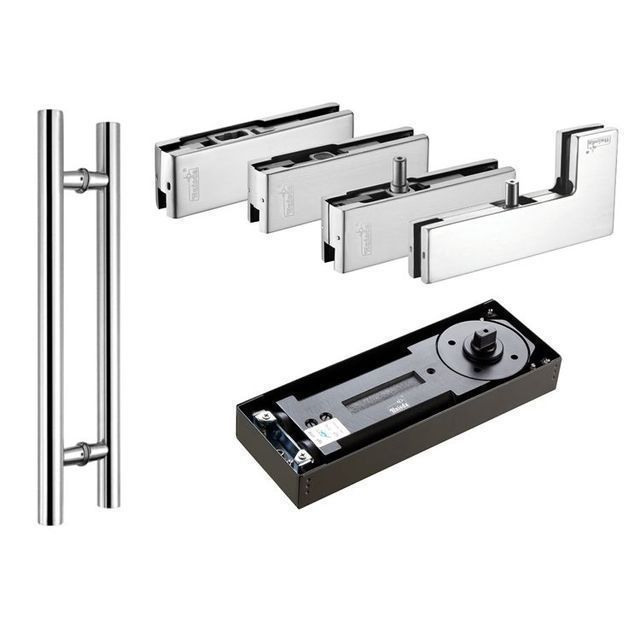

BTS84 120KG Double Cylinder Gymnastic Door Hydraulic Floor Hinge Frameless Glass Hydraulic Door Closer

  • $17.50 / 2 - 499 pieces
    $17.00 / 500 - 999 pieces
    $16.50 / 1000 - 9999 pieces
    $14.50 / >=10000 pieces
  • 2 pieces
  • Zhaoqing Huisda Hardware Products Co., Ltd.
  • Guangdong, China
  • Mr Samuel Leung

Product Detail

design style:modernFinish:PSS/SSS
After-sales service:Online technical support, free spare parts, return and exchangeKeep the angle open:90°
Supply capacity:50000 pieces per monthWarranty:3 years
model:HD 8400Durability test:500,000 cycles
Function:Adjustable closing speedtitle:floor hinge
payment terms:wire transferMaximum door width:1000 mm
Packaging Details:brown box or color boxport:Guangzhou/Foshan
OEM/Design Manufacturer:usablebrand:Huishida
place of origin; place of origin:Guangdong, Chinaapplication:office building
Maximum opening angle:116°Project solution ability:graphic design
Material:SS304+ cast ironMaximum door weight:120 kg
Product Description
title
floor spring
project code
HD 8400
Maximum door weight
120 kg
Maximum door width
1000 mm
keep open
90°
Maximum opening angle
116°
Material
SS304 cover + cast iron body
Turn off speed adjustment
Valve 1: 90°-25°, Valve 2: 25°-0°
proper temperature
-40°C ~ 45°C
Tested EN 1154/CE marking
Yes
Durability Test
600,000 cycles
OEM&ODM
usable
Recommended Products
application
Huishida products were selected by the Ministry of Engineering and Construction, and are used in shopping malls, apartments, office buildings, and commercial fields



Floor spring installation steps:
A. Draw a line so that the center of the pivot axis of the floor spring coincides with the pivot axis of the door.
B. Make holes in the ground as directed and required. The hole size should match the
ground spring casings so that they cannot loosen.
C. Put the floor spring into the opening and install it.
D. Lift the door with the door clip, and insert the rotating shaft of the floor spring into the rotating shaft hole of the door.
E. Adjust the screws in the three directions of the floor spring to keep the door body vertical and the axis of turning up and down
coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
