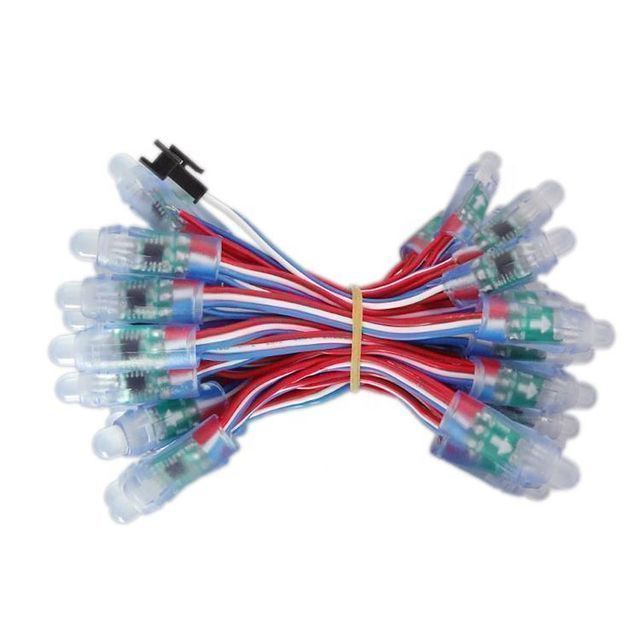

12mm WS2811 RGB LED Pixel Light IP67 Waterproof
- $0.09 /piece
- 1 piece
- Shenzhen Liang Jia Liang Technology Co., Ltd.
- Guangdong, China
- Ms Christie Zhou
Product Detail
| Lighting Solutions Services: | Engineering installation | thing: | 12mm LED pixel lights |
| place of origin; place of origin: | Guangdong, China | brand: | HS |
| Intellectual property level: | IP67 | Working life (hours): | 50000 |
| Packaging Details: | 50pcs/string; 250pcs/bag; 5000pcs/carton | Color rendering index (Ra>): | 80 |
| Light body material: | ABS | Warranty (year): | 2 years |
| Luminous efficacy (lm/w): | 67 | Operating Voltage: | DC5V |
| Supply capacity: | 100000 pieces per week | port: | Shenzhen |
| light source: | to lead | Number of LEDs: | 1 item |
| payment terms: | T/T, Western Union, PayPal | Working temperature(℃): | -30 - 45 |
| Lamp luminous flux (lm): | 18-20LM | Protection class: | IP67 |
| model: | HS-D12-RGBIC | Certification: | CE, RoHS |
| Bulb power: | 0.3 | diameter: | 12mm |
| application: | decorate | Input voltage (V): | DC5V/12V |
| Luminous color: | Changeable, RGB changeable | pack: | 50pcs/string |
| Integrated circuit chip: | WS2811/UCS1903 | shape: | round |
| energy consumption: | 0.3W | Item Type: | point Light |

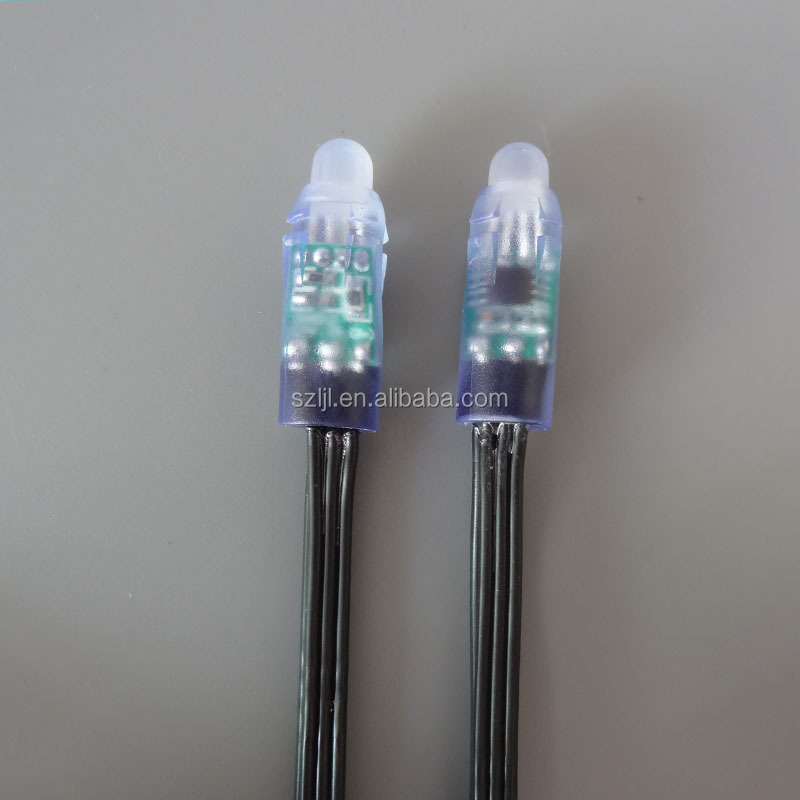

IP67 Waterproof WS2811 12mm Full Color LED Pixel Light
Product Description
thing | 12mm round RGB LED pixel light |
LED chips | 1 F8mm RGB LED |
IC type | WS2811/UCS1903 |
Operating Voltage | DC5V |
strength | 0.3W |
lumen | 18-20LM |
diameter | 12 mm diameter (0.45") 75 mm deep (1.5") |
protection level | IP67 |
line length | 10 cm of wire between each light |

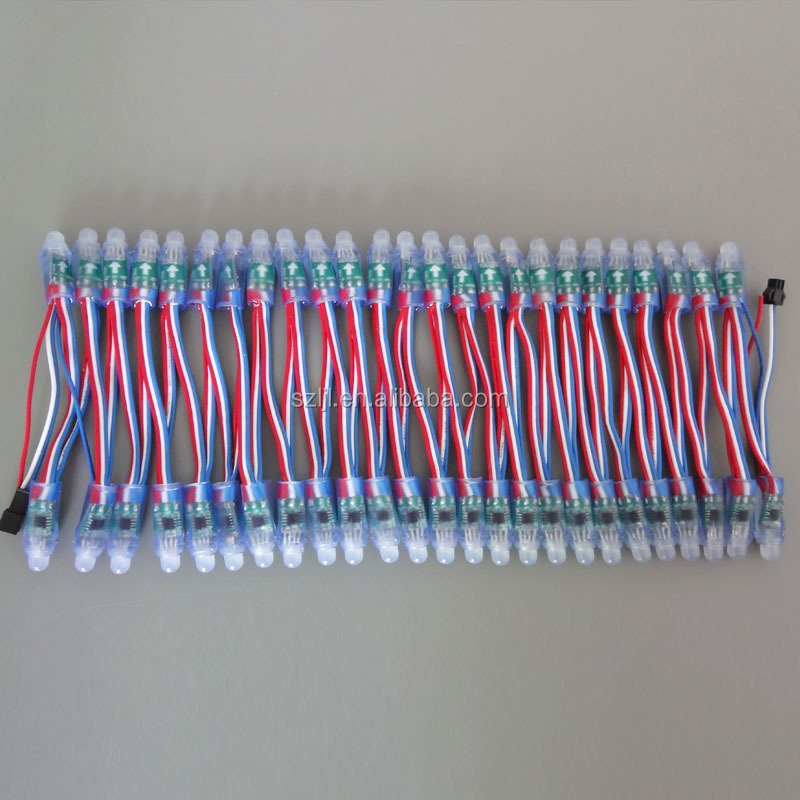

pack | 50pcs/string |
feature
1. Independent control: 1pc LED pixel & 1pc IC;
2. IC chip: can be WS2811, UCS1903 (3Pin); SM16716, LPD6803, WS2801 (4Pin);
3. Waterproof: IP67, full silicone waterproof protection;
4. Installation: easy to install, it is best to drill a 12mm hole;
5. It has the characteristics of high brightness, low power consumption, long life, low voltage, low fading, and gorgeous colors;
6. Power supply: must use DC5V power supply to power it, do not use higher than 6V; or you can destroy the entire pixel;
7. Connectors: 3PIN or 4PIN JST female and male connectors. Each LED pixel is independent and you can easily connect them one by one with male and female connectors.
3PIN: DAT, DC5V+, GND-
4PIN: DAT, CLK, DC5V+, GND
4PIN: DAT, CLK, DC5V+, GND
8. Factory direct sales, high quality and low price, 2-year warranty, fast after-sales service;

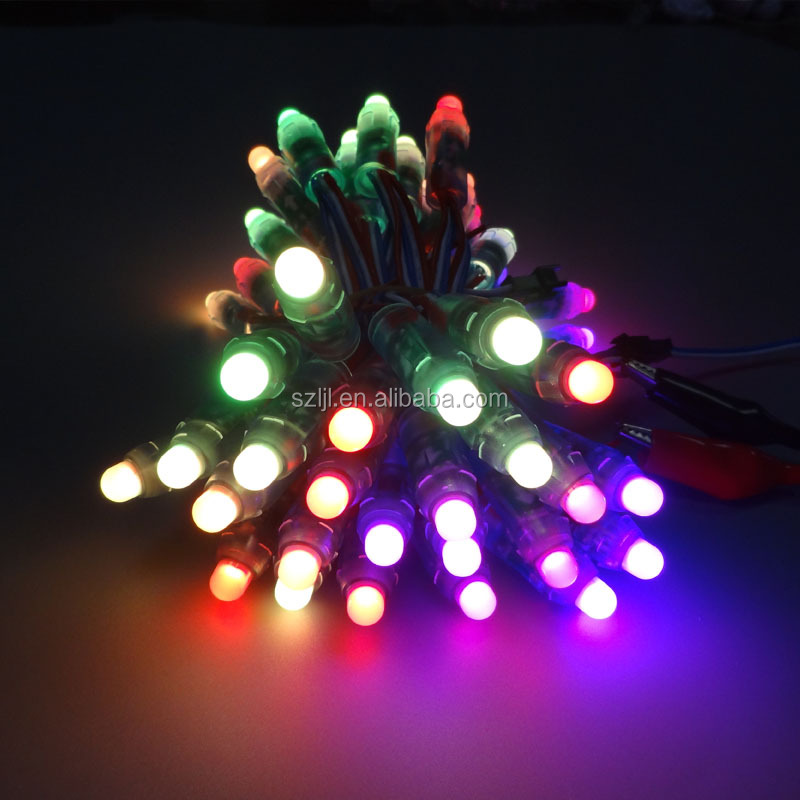

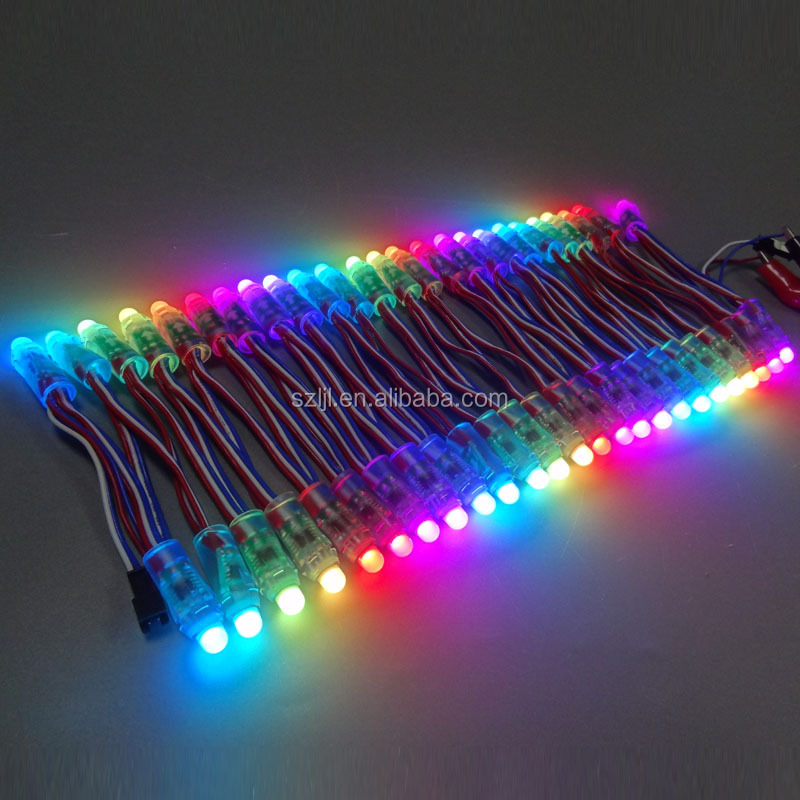

9. Color and effect: Addressable lights can be set to any color, or animation, such as water chasing, scanning, etc. According to different installation methods, different color characteristics and different dynamic effects of design can be formed.

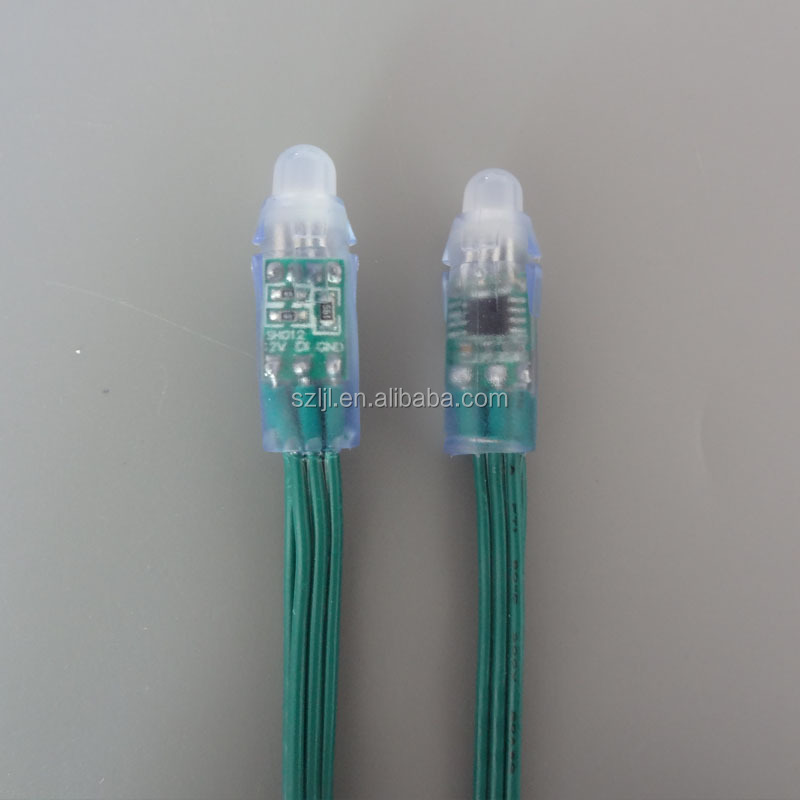

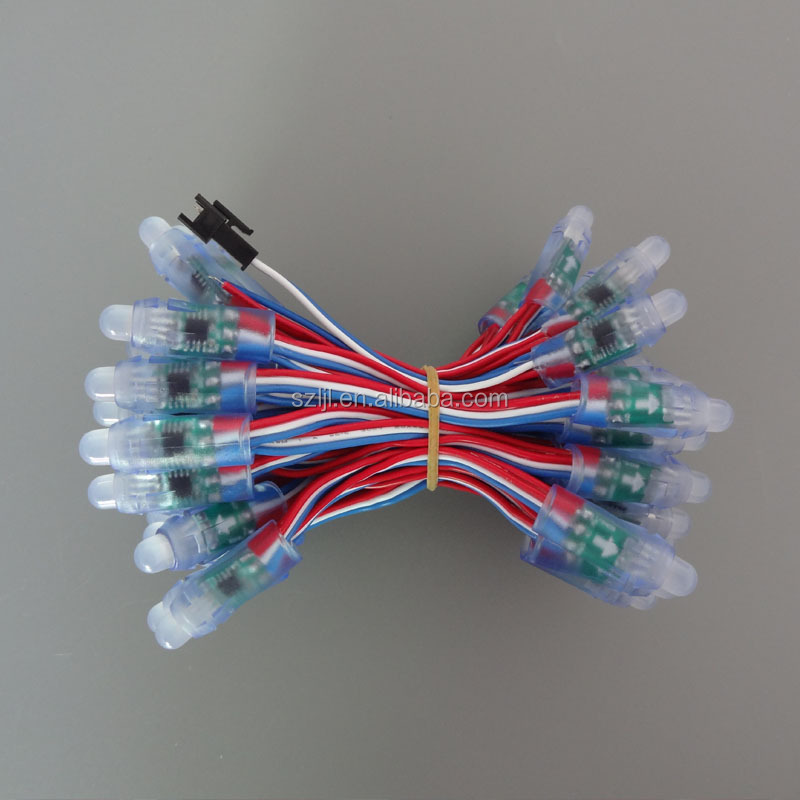

detail image

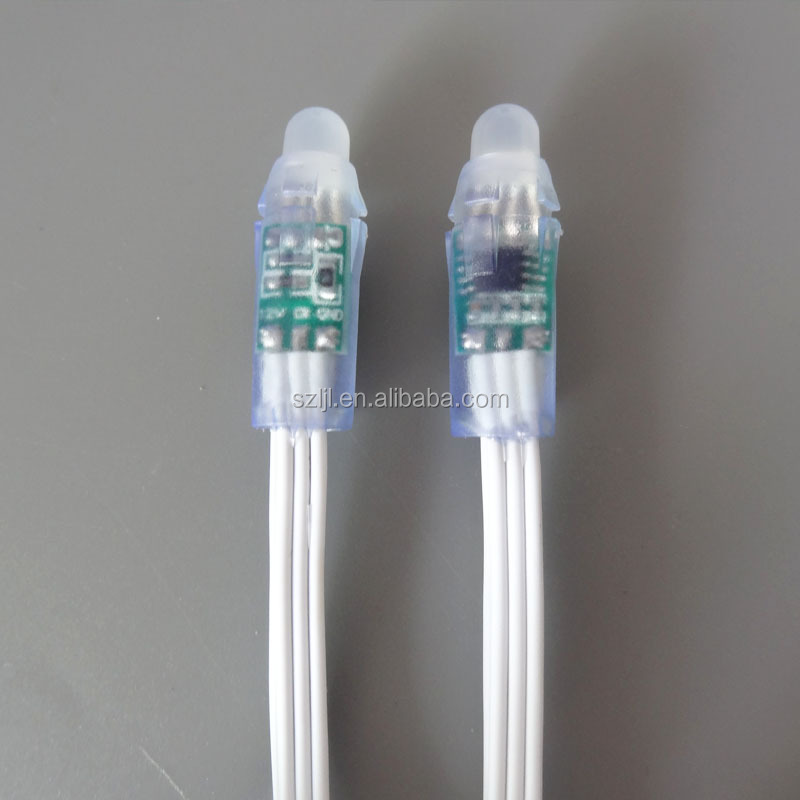

Cable color can be customized
