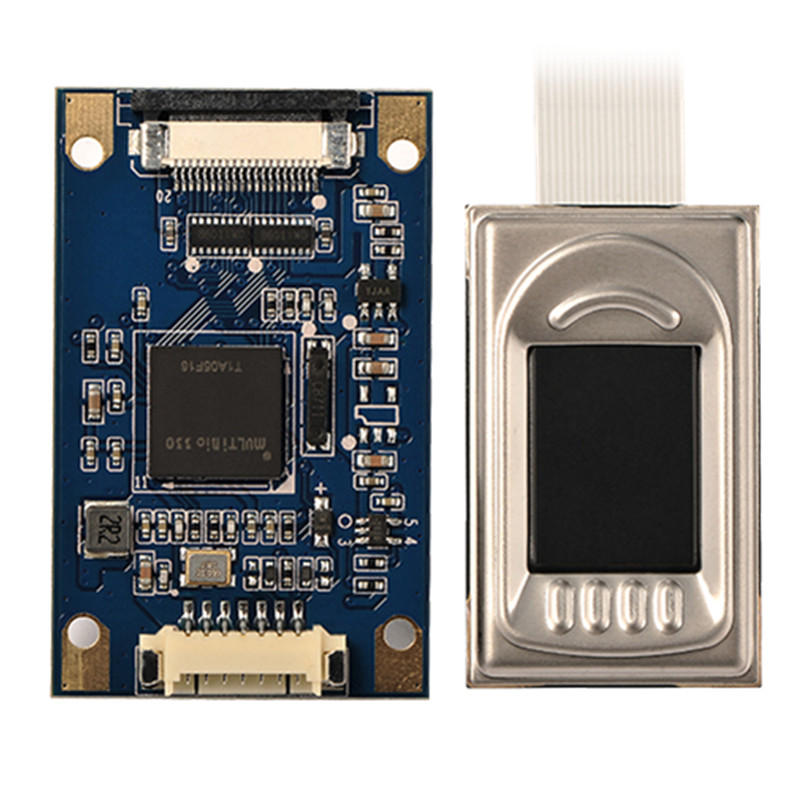

Bio31M advanced embedded silicon fingerprint module fingerprint reader biometric module
- $1.00 / >=2 units
- 2 units
- Chongqing Huakong Technology Co., Ltd.
- Guangdong, China
- Ms elena he
Product Detail
| Brand name: | Kotek | type: | other |
| Origin: | China | Product name: | Fingerprint module fingerprint reader |
| Payment terms: | Western Union, wire transfer, MoneyGram | model: | Biology 31M |
Product Description
Bio31M is an advanced embedded silicon fingerprint module specially developed for system integration equipment. It takes the Finger V10.0 fingerprint algorithm as its core, uses a high-performance ARM core processor and the world's top semiconductor fingerprint sensor. It is an ultra-high performance offline fingerprint module.
Model name | Biology 31M |
Material | Electric silicon |
CPU | 280MHz digital signal processor |
flash | 32MB |
system on chip | real-time operating system |
Encrypted fingerprint data | Yes |
water splash | No |
Dry fingerprint, wet fingerprint or rough fingerprint | Work goes well |
Power consumption | 5V: 200mA scanning; 5V: 100mA idle (waiting for finger) |
Live fingerprint detection | No |
lead | without any |
Supply voltage | 5V (USB)/3.3V (TTL-RS232) |
Supply current | 200mA |
communicate | UART (115200bps/TTL3.3V)/USB 2.0 |
Interface socket | Molex 51021-0700 (7-pin; 1.25 mm) |
Image resolution | 508dpi |
Effective collection area | 10.4*14.0mm |
Image size | 208*288 pixels |
Module size | Mainboard: 42.0*26.0*5.08mm (length*width*height), sensor: 34.06*20.4*2.47mm (length*width*height) |
Picture format | RAW, BMP, JPG |
template | ZKFinger V10.0; ISO19794-2; ANSI-378 |
template size | 1- 4KB (ZKFinger V10.0);1568 B (ISO 19794-2) |
Grayscale | 256 |
Operating environment | -20℃～+50℃; 90% relative humidity |
ISO/ANSI support | ISO-19794-2/4 ANSI-378 |
